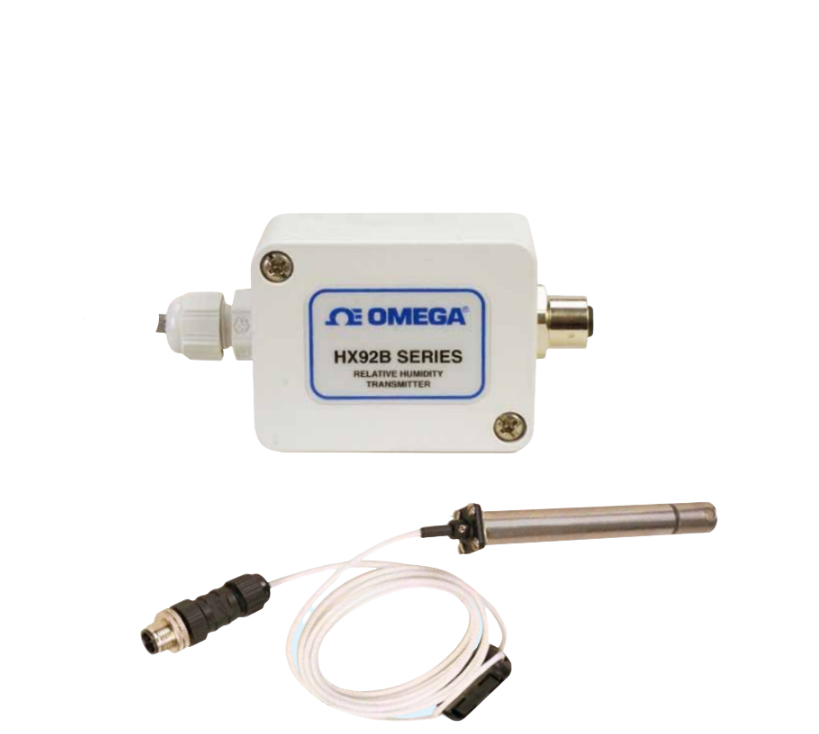

Input Power:
0~10 Vdc: 12 to 30 Vdc @ 50 mA
Measuring Range: 0 to 100% RH
Accuracy:
±2.5% from 20 to 80% RH
±3.5% from 5 to 20% and 80 to 95% RH
±4% from 0 to 5% and 95 to 100% RH
Output: 0~10 Vdc for 0 to 100% RH
Relative Humidity Temperature Compensation: -30 to 75°C (-22 to 167°F)
Relative Humidity Response Time: 8 second typical
Repeatability: ±0.1% RH
Sample Rate: 1 sample every 4 seconds
Housing: Gray polycarbonate, NEMA 13 (IP54)
Connections: Liquid-tight nylon with neoprene gland, for 2.29 to 6.73 mm (0.09 to 0.265") diameter cable; internal 5 position terminal block accepts 14 to 22 gauge wire
Weight: 230 g (8.1 oz)
Comes complete with quick start manual
