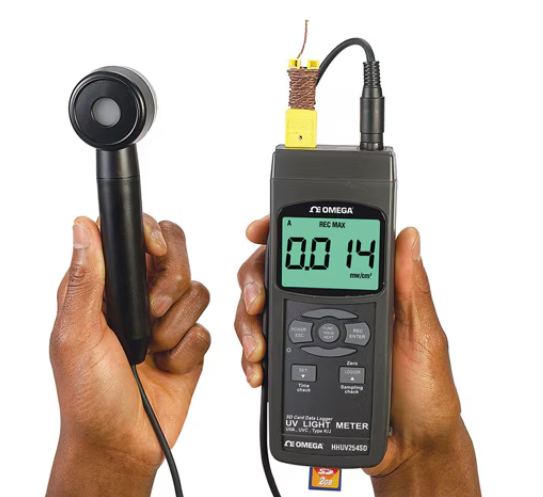

OMEGA HHUV254SD Handheld Light Meter (240 - 390 nm)

Display Type: LCD with green backlight

Display Size: 52 x 38 mm (2.05 x 1.5")

UV Light Types Measured: UVA, UVC

Measurement Range: 240 to 390 nm

Measurement Accuracy: ±4% of full scale reading + 2 digits

Full-Scale Autoranges: 2 mW/cm2 and 20 mW/cm2

Storable/Recallable Readings: Max, min

Data Logging Sampling Time: 1 sec to 1 hr

SD Card Capacity: 1 to 16 GB

Settable Parameters: Date, time, auto power off, beep sound, temperature unit (°C or °F), sampling time, thermocouple Type (K or J), decimal point or comma

Operating Temperature: 0 to 50°C (32 to 122°F)

Operating Relative Humidity: 0 to 85%

Thermocouple Input Ranges and Accuracy:

Type K: -50 to 1300°C (±0.2% + 0.5°C)

-50.1 to -100°C (±0.2% + 1°C)

-58 to 2372°F (±0.2% + 1°F)

-58.1 to -148°F (±0.2% + 1.8°F)

Type J: -50 to 1200°C (±0.2% + 0.5°C)

-50.1 to -100°C (±0.2% + 1°C)

-58 to 2192°F (±0.2% + 1°F)

-58.1 to -148°F (±0.2% + 1.8°F)

Power Supply: 6 Alkaline “AA” batteries or optional 9 Vdc AC adaptor

Power Consumption:

6.5 mADC (normal operation, with backlight off and SD card not saving data)

30 mADC with baclight on

Dimensions:

Meter: 177 H x 68 w x 45 mm D (6.97 x 2.68 x 1.77")

UVA Probe Head: 45 (diagonal) x 32 mm L (1.77 x 1.26")

UVA Probe Handle: 24 (diagonal) x 125 mm L (0.94 x 4.92")

UVC Probe: 38 (diagonal) x 25 mm L (1.50 x 0.98")

Weight:

Meter: 351 g (12.38 oz)

UVA Probe: 100 g (3.53 oz)

UVC Probe: 103 g (3.63 oz)

Comes complete with UVA probe, UVC probe, probe cover, 6 “AA” batteries, hard carrying case, 2 GB SD memory card, Type K thermocouple and operator’s manual.
