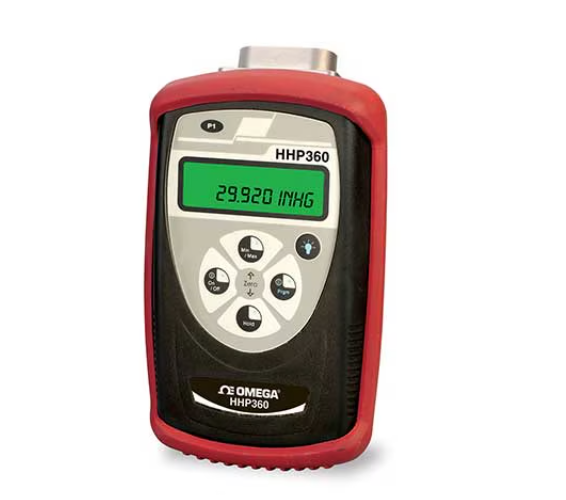

OMEGA HHP360-A Barometric Smart Manometer (0 - 900 mmHg, ±0.02%FS)

Specifications

(Absolute Pressure):0 to 17.403 psia (0 to 900 mmHg, 0 to 35.433 inHg

Accuracy (Includes thermal errors from -5 to 50°C (23 to 122°C): ±0.02%FS

Operating Temperature: -5 to 50°C (23 to 122°F)

Storage Temperature: -40 to 60°C (-40 to 140°F)

Safe Overpressure: 77 psia (4000 mmHg)

Display/Resolution: 5 significant digits LCD (0.25" high) 2 line x 16 alphanumeric characters with adjustable contrast

Operating Modes: Local pressure, sea level pressure from user set height, altitude from user set datum

Backlight: Green, changes to red for overpressure

Units of Measure: mmHg, inHg, PSI, mbar, bar, kPa, Torr, feet, meters

Process Features: Tare, Min/Max capture, leak test, damping rates, auto shutoff

Process Media: Fluids and gases compatible with 316 SS

Pressure Fitting: 1/8 NPT female, 316 SS

Power: 4 AA batteries (included)

Battery Life: >100 hr continuous use

Case: Polycarbonate, sealed keypad

Dimensions: 165 H x 91 W x 57 mm D (6.5 x 3.6 x 2.25")

Weight: 400 g (14 oz)

Comes complete with operator’s manual, NIST traceable calibration certificate, 4 “AA” batteries, and protective rubber boot.
