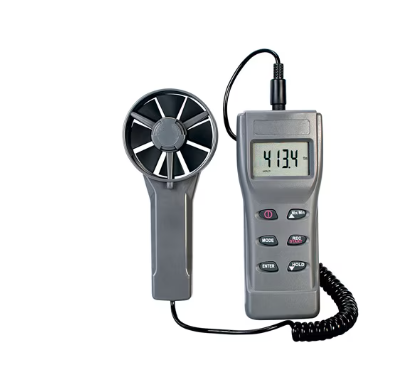

OMEGA HHF11A Air Velocity/Humidity/Dew Point/Wet Bulb/Air Volume Meter (0.3 ~ 35 m/s, -20 ~ 60°C, 0 ~100%)

Application Type: Handheld

Air Velocity:

Range: 0.3 to 35 m/s (1 to 114 ft/s)

Resolution: 0.1

Accuracy: ±5%

Air Volume:

Range:0 to 99,999 m3/min (0 to 99,999 ft3/min)

Resolution: 0.1

Accuracy: ±5%

Capacity:

Range: 0 to 99,999 BTU/h (0 to 99,999 kW)

Resolution: 0.1

Accuracy: ±3%

Temperature:

Range: -20 to 60°C (-4 to 140°F)

Resolution: 0.1°C/°F

Accuracy: ±0.6°C (1°F)

Max Process Temperature: 60 °C (140 °F)

Humidity:

Range: 0 to 100%

Resolution: 0.1%

Accuracy: ±3% from 10 to 90% ; ±5% above 90%

Dew Point:

Range: -68 to 70°C (-90 to 158°F)

Resolution: 0.1°C/°F

Accuracy: ±3% from 10 to 90% ; ±5% above 90%

Wet Bulb:

Range: -22 to 70°C (-7.6 to 158°F)

Resolution: 0.1°C/°F

Accuracy: ±3% from 10 to 90% ; ±5% above 90%

Probe Diameter: 2.9"

Display: LCD

Supply Power: 4 “AAA” batteries (included)

Features: CFM, Humidity, Dew Point, Temperature

Maximum Reading: 99,999

Cable Length: 50 cm extends to 1.5 m (20" extends to approx. 5')

Vane Diameter: 74 mm (2.9")

Vane Size (H x W x D): 164 x 74 x 40 mm (6.45 x 2.9 x 1.57")

Unit Size (H x W x D): 157 x 62 x 28 mm (6.18 x 2.44 x 1.1")

Display Size (H x W): 34 x 47 mm (1.3 x 1.85")

Digit Height: 18 mm (0.7")

Weight: 263 g (9.28 oz) without batteries

Response Time: 1 second

Operating Current: 5 to 8 mA

Operating Temperature: 0 to 50°C (32 to 122°F)

Operating Humidity: Less then 90% RH

Comes complete with operator’s manual, hard carrying case and 4 “AAA” batteries, Replacement vane, Software and RS232 cable
