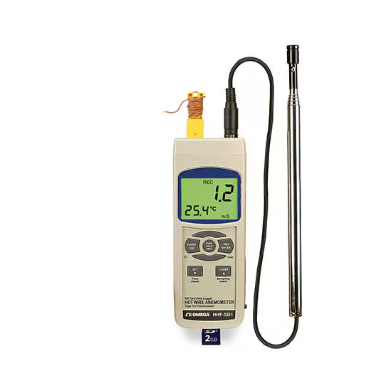

OMEGA HHF-SD1 Hot Wire Anemometer with Real Time Data Logger (0.2 ~ 5 m/s)

Range//Resolution:

0.2 to 5 m/s // 0.01 m/s;

5.1 to 20 m/s // 0.1 m/s

0.70 to 18 km/h // 0.01 km/h;

18 to 72 km/h // 0.1 km/h

0.50 to 11.20 mph // 0.01 mph;

11.2 to 44.7 mph // 0.1 mph

0.40 to 9.70 knot // 0.01 knot;

9.7 to 38.8 knot // 0.1 knot

40 to 3940 ft/min // 1 ft/min

Accuracy (Reading): ±(5% + a) reading or ±(1% + a) full scale whichever is greater

Display: 52 x 38 mm (2.05 x 1.5') LCD with green backlight (on/off)

Measurement Units:

Velocity: m/s, km/h, ft/min, knots, mile/hr

Temperature: °C or °F

Sensor Construction: Glass bead thermistor

Sampling Time:

Auto: 1 to 3600 seconds

Manual: Push the data logger button once; will save data one time

Memory Card: SD memory card

Temperature Compensation: Automatic

Display Update: At 1 second

Data Output (RS232/USB): With optional cable/software

Operating Temperature: 0 to 50°C (32 to 122°F)

Operating Humidity: Less than 85% RH

Power: 6 'AAA' alkaline or heavy-duty batteries (included), or 9V power adaptor (optional)

Current Draw: 15 mA DC (without SD card or backlight), 36 mA (all functions)

Weight: 515 g (1.13 lb)

Dimensions:

Instrument: 203 L x 76 W x 38 mm D (8 x 3 x 1.50')

Probe: 12 mm (0.47') diameter, 280 to 940 mm (11 to 37') length Air

Temperature Measuring Range: 0 to 50°C (32 to 122°F)

Resolution: 0.1°C (0.1°F)

Accuracy: ± 0.8°C (1.5°F)

Comes with SD card, and ADAPTER-SD AC adaptor
