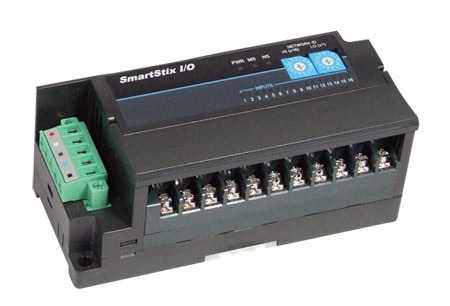

OMEGA HE559DIM610 Compact I/O Expansion for the XE/XT/XL OCS Series Controller (Digital, Digital: 16)

Width: 48 mm

Height: 50 mm

Length: 115 mm

Isolation: Photo coupler

Input Type: Digital

Digital Input: Digital: Low = 0 Vdc nominal

Output Signal: None

Response Time: OFF to ON: 0 to 3 ms or less , ON to OFF: 0 to 3 ms or less

Data Interface: CsCAN

LED Indicators: I/O Status (One per Point); Power, Module Status, Network Status

Digital I/O Note: Rated Input Current: 7 mA , Rated Voltage: 11 to 25 Vdc, ON Voltage Level: 19 Vdc or less, OFF Voltage Level: 6 Vdc or less, Input Characteristics Bidirectional, Isolation Method: Photo coupler OFF to ON Response: 0 to 3 ms or less, ON to OFF Response: 0 to 3 ms or less

Input Voltage Note: Absolute Maximum Input Voltage: ±10V

Data Interface Note: Number of Total Nodes: 253;Configuration Method: Module ID set using Two Rotary Switches

Electrical Connection: Removable Screw Terminal

Transmission Distance: 457 m

Number of Channels, Input: Digital: 16

Number of Channels, Output: None
