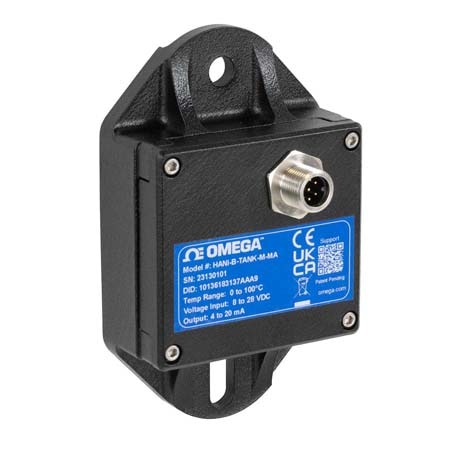

OMEGA HANI-B-TANK-M-MA HANI Temperature Sensor for Metal Tanks (Chemicals, Clean Water and Purified Solutions, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, General Purpose, Industrial and Manufacturing, Oils, Pharmaceutical, Waste Management, Nylon, Silicone, Brass, Stainless Steel)

Width: 4.38 in

Height: 1.72 in

Length: 2.6 in

Accuracy: ± 0.5 °C (± 0.9 °F)

Mounting: Bolt-On

Materials: Nylon, Silicone, Brass, Stainless Steel

Applications: Chemicals, Clean Water and Purified Solutions, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, General Purpose, Industrial and Manufacturing, Oils, Pharmaceutical, Waste Management

Accuracy Note: ± 0.5°C (± 0.9°F) (stainless steel); ± 1.0°C (± 1.8°F) (other metals)

Base Mounting: Metal Tank

Output Detail: 4 to 20 mA User scalable analog output, default scaling 0-100°C

Output Signal: Current

Response Time: t63: 5 sec ; t90: 10 sec

Tank Diameter: less than 2 ft

Supply Voltage: 8 to 28 Vdc

Loop Resistance: (Vsupply -8V)/0.24 A

Enclosure Ratings: IP65

Supply Power Note: 8 VDC - 28 VDC (loop powered)

Media Compatibility: Water, Water-based fluids

Electrical Connection: M12 8 pin Female

Process Temperature, Max: 100 °C

Process Temperature, Min: 0 °C

Operating Temperature, Max: 40 °C

Operating Temperature, Min: 0 °C
