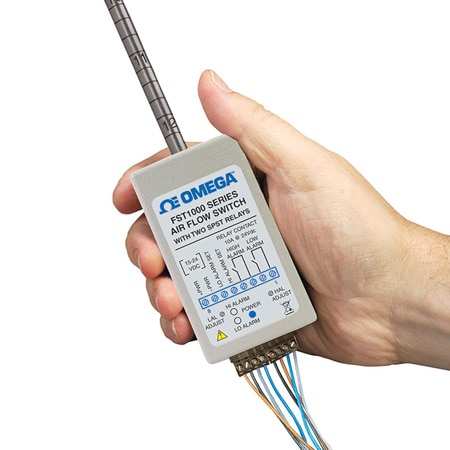

OMEGA FST1002A Economical Air Flow Switch With High/Lo Alarms (SPST NO, Fixed Probe)

Width: 2 in

Height: 3.5 in

Length: 1.25 in

Weight: 5.6 oz

Accuracy: ± 2 %

Materials: 304 Stainless Steel

Probe Style: Fixed Probe

Switch Type: SPST NO

Probe Length: 12 in

Accuracy Note: Accuracy: 2% FS (air velocity)

Response Time: 250 msec

Switch Rating: 10 A

Alarm Deadband: 0.05

Probe Diameter: 0.25 in

Supply Voltage: 15 to 24 Vdc

Supply Power Note: 15 to 24 Vdc @ 200 mA

Switch Rating Note: 2 SPST, 10A @ 24 Vdc, 10A @ 250 Vac (Resistive)

Media Compatibility: Air

Additional Features 1:

Electrical Connection: Screw Terminal

Linear Flow Rate, Max: 10000 FPM

Linear Flow Rate, Min: 0 FPM

Process Connection Size: 1/4 in

Process Connection Type: Compression Fitting

Process Temperature, Max: 93 °C

Process Temperature, Min: -40 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
