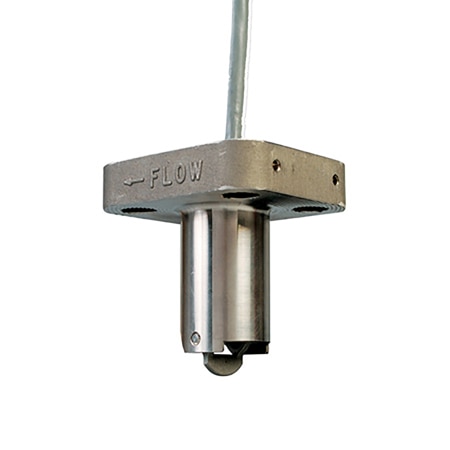

OMEGA FP-5201 Stainless Steel Paddlewheel Flow Meter (± 0.2 ft/s, 1/2 in, NPT Female, 12 in, 5 to 24 Vdc, 12 Hz/fps)

Weight: 0 kg

Accuracy: ± 0.2 ft/s

K-Factor: 12 Hz/fps

Impedance: 10 kΩ

Cable Length: 25 ft

Output Detail: 12 Hz per ft/sec, 80 mV peak-to-peak per fps nominal

Pressure Type: Gauge

Sensor Length: 2.5 in

Velocity, Max: 20 ft/s

Velocity, Min: 1.6 ft/s

Pipe Size, Max: 12 in

Pipe Size, Min: 1.25 in

Supply Current: 10 mA max

Supply Voltage: 5 to 24 Vdc

Viscosity Note: 1 Centipoise (water); up to 5 cp above 5 fps velocity

Linearity Error: ±1%

Viscosity Range: 5 cPs

Cable Length Note: 7.5 m (25'), can be extended up to 30 m (100') with copper wire

Electrical Output: Sine Wave

Materials, Wetted: 316 Stainless Steel, 347 Stainless Steel, CD4MCu Stainless Steel, Fluoroloy B, Tungsten Carbide

Supply Power Note: 5 to 24 Vdc @ 10 mA maximum

Media Compatibility: Liquids

Repeatability Error: ±0.5%

Mounting Orientation: N/A

Pipe Connection Note: Mini Tap

Operating Pressure, Max: 1500 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 1/2 in

Process Connection Type: NPT Female

Media Compatibility Note: 10%, with particulate size not exceeding 5 mm cross section or length

Material Construction Option: N/A
