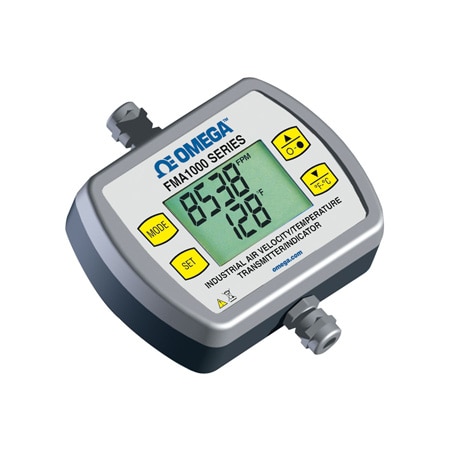

OMEGA FMA1002A-V2 Indicating Air Velocity/Temperature Xtr with I or V Output (Remote Mount Probe, 5000 m/h, 121 °C, RTD)

Width: 1.3 in

Height: 4.5 in

Length: 3.5 in

Weight: 230 g

Accuracy: ± 1.5 %

Materials: Stainless Steel

Alarm Note: High and low alarm voltage outputs, corresponding to air velocity

Form factor: Remote Mount Probe

Probe Style: Fixed Probe Top Mount

Cable Length: 15 ft

Display Type: Backlit LCD

Probe Length: 12 in

Accuracy Note: 1.5% full scale or 12 FPM whichever larger

Output Signal: Voltage

Response Time: 250 ms

Data Interface: USB

Enclosure Type: NEMA Type 4X, IP65

Probe Diameter: 0.25 in

Supply Current: 200 mA

Supply Voltage: 15 to 24 Vdc

Air Velocity, Max: 5000 m/h

Air Velocity, Min: 0 m/h

Electrical Output: 0 to 10 V

Number of Sensors: 3

Supply Power Note: 15 to 24 Vdc @ 200 mA

Response Time Note: 250 msec up to 2 seconds

Temperature Accuracy: ± 0.5%

Temperature Sensor Type: RTD

Process Temperature, Max: 121 °C

Process Temperature, Min: -40 °C

Enclosure Temperature, Max: 50 °C

Enclosure Temperature, Min: 0 °C

Operating Temperature, Max: 93 °C

Operating Temperature, Min: -40 °C

Temperature Sensor Type Note: Three RTDs, 100 and 1000 Ω
