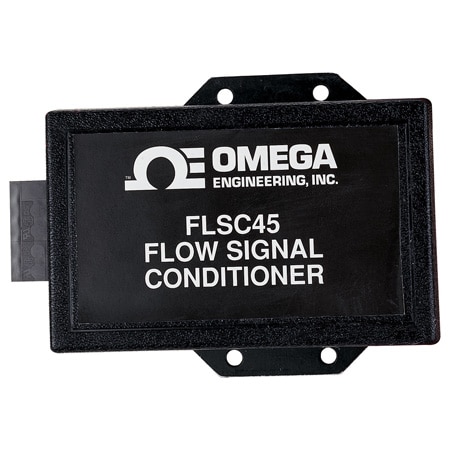

OMEGA FLSC-45B High Performance Flow Signal Conditioners (Sinewave, 4 to 20 mA, 1 to 5 Vdc)

Width: 116 mm

Height: 65 mm

Length: 32 mm

Weight: 300 g

Accuracy: ± 0.15 %

Mounting: Wall Mount

Materials: Aluminum

Input Type: Sinewave

Input Range: 20 mV p-p min

Supply Power: Current Output: 10 to 24 Vdc/ Volltage Output: 15 to 24 Vdc

Output Signal: Current, Voltage

Repeatability: ± 0.025%

Response Time: 2 sec

Number of Wires: 3

Electrical Output: 4 to 20 mA, 1 to 5 Vdc

Enclosure Ratings: IP65, NEMA 4

Supply Power Type: DC

Loop Resistance, Max: (Vs -10V) / 0.020 A

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -25 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
