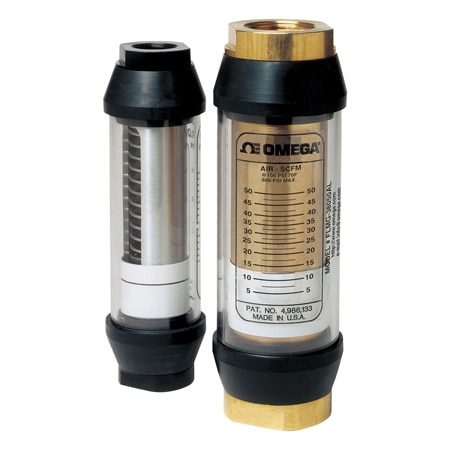

OMEGA FLMG-12050BR Variable Area In-line Flow Meters For Air (50 SCFM, 1/2 in, NPT Female)

Scale: Direct Read

Length: 6.56 in

Accuracy: ± 4 %

Diameter: 1.875 in

Materials: Brass

Switch Type: N/A

Seal Options: Buna, EPR, FKM, Perfluoroelastomer

Air Flow, Max: 50 SCFM

Air Flow, Min: 5 SCFM

Output Signal: N/A

Repeatability: ± 1%

Valve Included: false

Mechanical Life: >10^6 cycles

Number of Tubes: 1

Materials, Wetted: Brass, Buna-N (NBR), PTFE, Stainless Steel

Media Compatibility: Air

Operating Pressure, Max: 600 psi

Process Connection Size: 1/2 in

Process Connection Type: NPT Female

Scale Media Calibration: Air @ 100 psi

Process Temperature, Max: 116 °C

Standard Calibration Fluid: Air @ 21°C (70°F), 1.0 sg and 6.8 bar (100 psig)
