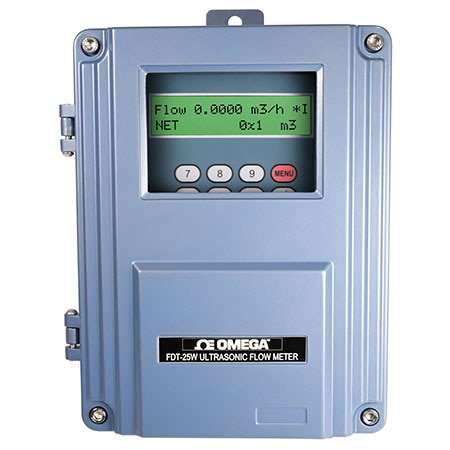

OMEGA FDT-25W Wall Mount Ultrasonic Flow Meter (4 in, Wall Mount, Clamp-on)

Accuracy: ± 1 %

Materials: Steel, Stainless Steel, Cast Iron, Cement, Copper, PVC, Aluminum, FRP

Form factor: Wall Mount

Cable Length: 5 m

Display Note: LCD with Backlight

Display Type: LCD

Accuracy Note: ±1% of reading at rates >(0.2m/s) 0.6 ft/s

Repeatability: 0.002

Response Time: 0 to 999 sec

Velocity, Max: 32 m/s

Velocity, Min: -32 m/s

Data Interface: BACnet MS/TP, Modbus RTU, USB

Pipe Size, Max: 4 in

Pipe Size, Min: 0.75 in

Supply Voltage: 220 Vac / 24 Vdc

Transducer Type: Clamp-on

Display Language: English, Chinese

Measurement Type: Transit Time

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP65

Number of Outputs: 1

Relative Humidity: 85% RH

Supply Power Type: AC/DC

Process Temperature, Max: 90 °C

Process Temperature, Min: -30 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -30 °C
