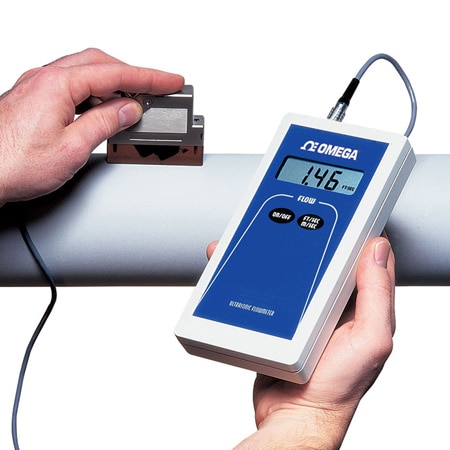

OMEGA FD613-S1 Portable Doppler Ultrasonic Flow meters (1 in, Handheld, Non-Invasive Clamp-On)

Accuracy: ± 2 %, ± 5% with transitional flow

Materials: ABS

Form factor: Handheld

Cable Length: 2 m

Display Note: Single line—four-digit LCD readout of velocity [18 mm (0.7") digits], signal strength, measuring units, and low battery indication

Display Type: LCD

Velocity, Max: 30 ft/s

Velocity, Min: 0.3 ft/s

Pipe Size, Max: 1 in

Pipe Size, Min: 0.25 in

Transducer Type: Non-Invasive Clamp-On

Number of Digits: 4

Enclosure Ratings: NEMA Type 12x

Relative Humidity: 95% non-condensing

Supply Power Note: Battery powered, non-rechargeable alkaline, four “AA” (included), providing over 30 hours of continuous operation.

Supply Power Type: Battery

Calibration Option: NIST

Battery Size and Type: Alkaline AA

Process Temperature, Max: 82 °C

Process Temperature, Min: -40 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
