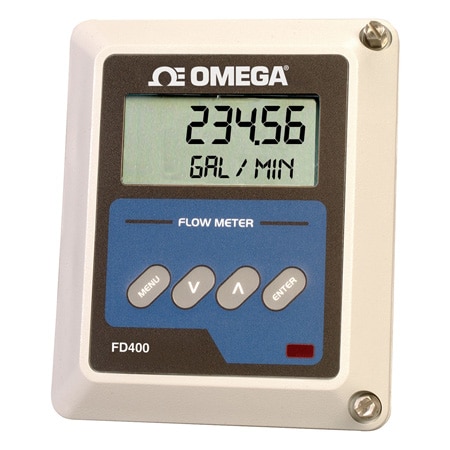

OMEGA FD-400 Doppler Ultrasonic Flow Meter (120 in, Wall Mount)

Keypad: Yes

Accuracy: ± 2 %, ± 5% with transitional flow

Materials: Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets

Form factor: Wall Mount

Cable Length: 6 m

Display Note: 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable)

Display Type: LCD

Supply Power: 115 Vac

Accuracy Note: ±2% FS over calibrated span

Output Detail: Open Collector Output - 1 A at 100 Vmax

Response Time: 1 to 60 sec

Velocity, Max: 9 m/s

Velocity, Min: 0.05 m/s

Control Output: N/A

Pipe Size, Max: 120 in

Pipe Size, Min: 0.3333 in

Measurement Type: Doppler Ultrasonic

Number of Digits: 8

Electrical Output: N/A

Enclosure Ratings: IP66, NEMA Type 4X

Supply Power Note: 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max

Supply Power Type: AC

Calibration Option: NIST

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C
