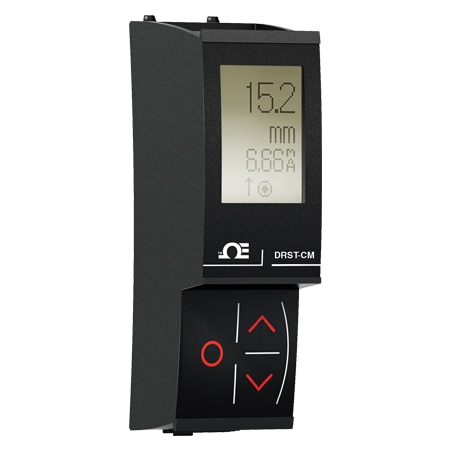

OMEGA DRST-CM Snap In Front Panel Programmer with Modbus over RS-485

Width: 23.3 mm

Height: 73.2 mm

Length: 26.5 mm

Weight: 30 g

Isolation: Isolation voltage, test/working :2.5 kVAC / 250 VAC reinforced isolation

Update Rate: > 50 Hz

Display Type: N/A

Installation: Pollution degree 2 and measurement/overvoltage category II

Response Time: < 20 ms

Approvals Note: EMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011

Data Interface: RS485, Modbus RTU

EMC Immunity Note: NAMUR NE21, A criterion, burst: No loss of communication

Enclosure Ratings: IP20

Noise Calibration: >60 dB

Power Consumption: max 0.15 W

Relative Humidity: <95% RH

Response Time Note: Response delay: 0…1000 ms Data rates, baud: 2400, 4800, 9600, 19200,38400, 57600, 115200 Automatic baudrate detection: Yes - can be configured ON or OFF Parity: Even, Odd, None Stop bit(s): 1 or 2 Digital addressing: 1...247 Response delay: 0...1000 ms

Electrical Connection: RJ45

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
