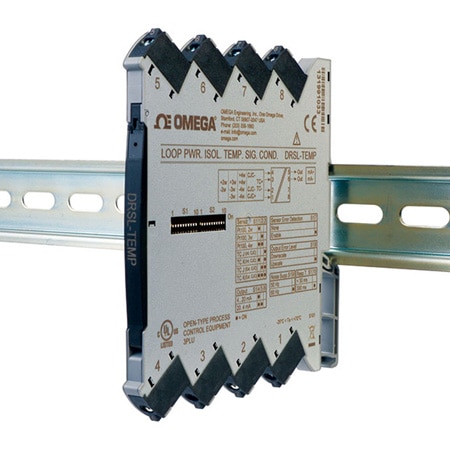

Width: 6.1 mm
Height: 113 mm
Length: 115 mm
Weight: 70 g
Mounting: DIN Rail 35 mm Standard, EN 60715
Approvals: CE, UL, RoHS
Isolation: 300 Vac
Stability: Load Stability: ≤0.01% of span/100 Ω
Input Type: Thermocouple, RTD
Wire Gauge: 26 to 12 AWG
EMC Standard: NAMUR NE 21
Installation: Pollution degree 2 and measurement/overvoltage category II
Output Value: Process
RTD Accuracy: ± 0.05 %
Voltage Loss: 5.5 Vdc
Accuracy Note: Thermocouple Input: Better than 0.5°C or ±0.05% of span (selected input range) RTD Input: Better than 0.1°C or ±0.05% of span (selected input range)
Output Detail: Programmable Signal Ranges:0 to 20 mA and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA Sensor Error Detection(Dip Switch Selectable forEnable or None): Below 3.5 mA or above 23 mA Incorrect DIP-Switch Setting Identification: Below 3.5 mA Output Error Level: DIP switch selectable for upscale or downscale
Output Signal: Current
Response Time: < 30 ms
Supply Voltage: 5.5 to 35 Vdc
Load Resistance: Resistance: ≤(Vsupply - 5.5)/0.023
Input Range Note: THERMOCOUPLE INPUT ;Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable); CJC Accuracy via External CJC (Pt100 RTD Sensor): Better than ±0.15°C; CJC via Internally Mounted Sensor: Better than ±2.5°C;Open Thermocouple Detection: Yes (DIP switch selectable upscale or downscale);Pt100 RTD INPUT;Sensor Current, RTD: <150 µA;Sensor Cable Specifications:50 Ω per wire;Effect of Sensor Cable Resistance (3 or 4-Wire RTD): <0.002 Ω/Ω;Broken Sensor Detection: >800 Ω;Shorted Sensor Detection: <18 Ω
Number of Inputs: 2
Wire Code Option: 2 -, 3 - , 4- Wire
EMC Immunity Note: NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP20
Noise Calibration: >60 dB
Power Consumption: 0.7 W
Relative Humidity: 0 to 95% RH (non-condensing)
Supply Power Type: DC
Response Time Note: Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)
Screw Terminal Torque: 0.5 Nm
Thermocouple Accuracy: ± 0.05 %
Temperature Coefficient: Thermocouple : ≤±0.1°C/°C or ≤±0.01%/°C; RTD : ≤±0.02 °C/°C
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -25 °C
Calibration Temperature, Max: 28 °C
Calibration Temperature, Min: 20 °C
Temperature Measurement Range: J: -100 to 1200°C, K: -180 to 1372°C, Pt100: -200 to 850°C
