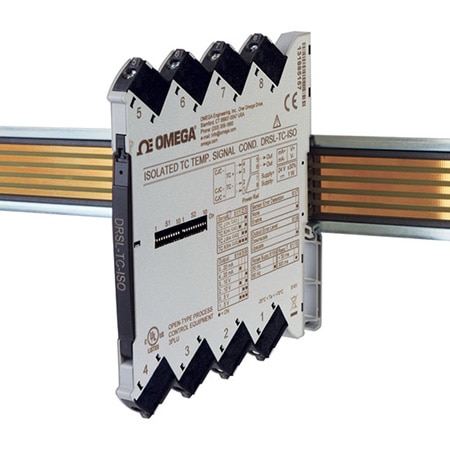

OMEGA DRSL-TC DIN Rail Thermocouple Input Signal Conditioners | Low Profile (Thermocouple, J: 100 to 1200°C, K: 180 to 1372°C)

Width: 6.1 mm

Height: 113 mm

Length: 115 mm

Weight: 70 g

Accuracy: ± 0.1 %

Mounting: DIN Rail 35 mm Standard, EN 60715

Approvals: CE, UL, RoHS

Stability: Load Stability: ≤0.01% of span/100 Ω

Input Type: Thermocouple

Wire Gauge: 26 to 12 AWG

EMC Standard: NAMUR NE 21

Installation: Pollution degree 2 and measurement/overvoltage category II

Output Value: Process

Output Detail: Current Output Programmable Signal Ranges:0 to 20 and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA for 4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection (Dip Switch Selectable for Enable or None):Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Incorrect DIP-Switch Setting Identification: 0 mA Output Error Level: DIP switch selectable for upscale or downscale Voltage Output Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V and 1 to 5V Range Limits (Out of Range):Range ±2.5% Incorrect DIP Switch Setting Identification: 0V

Output Signal: Current, Voltage

Response Time: < 30 ms

LED Indicators: Green LED indicates operational status of the unit and input sensor

Supply Voltage: 16.8 to 31.2 Vdc

Load Resistance: Voltage Output :>10 kΩ min,;Current Output: 21 mA/600 Ω /12.6V max

Input Range Note: Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable);CJC Accuracy via External CJC ;(Pt100 RTD Sensor): Better than ±0.15°C (DRSL-TC-ISO only);CJC via Internally Mounted Sensor:Better than ±2.5°C;Open Thermocouple Detection:Yes (DIP switch selectable upscaleor downscale)

Number of Inputs: 1

EMC Immunity Note: NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP20

Power Consumption: 0.7 W, Internal - 0.65 W

Relative Humidity: 0 to 95% RH (non-condensing)

Supply Power Note: 16.8 to 31.2 Vdc via connectors

Supply Power Type: DC

Response Time Note: Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)

Voltage Output Range: 0 to 10 Vdc

Additional Features 1: Non-Isolated

Screw Terminal Torque: 0.5 Nm

Temperature Coefficient: <±0.01% of span/°C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -25 °C

Calibration Temperature, Max: 28 °C

Calibration Temperature, Min: 20 °C

Temperature Measurement Range: J: 100 to 1200°C, K: 180 to 1372°C
