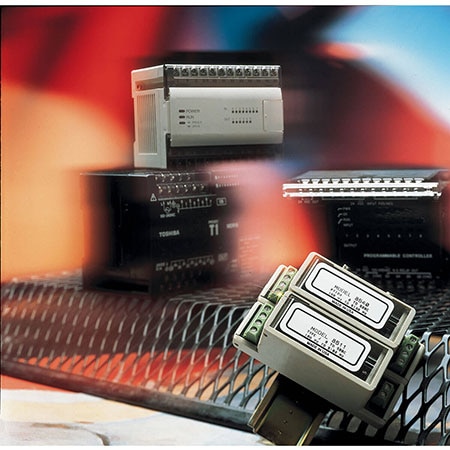

OMEGA DRP-8555 DIN Strain Gauge to Frequency Converter for Micro PLCs (Strain Gage, 0 to 50 mV)

Width: 27 mm

Height: 42 mm

Length: 96 mm

Weight: 85 g

Mounting: DIN Rail Mount

Materials: Plastic

Input Type: Strain Gage

Wire Gauge: 22 to 16 AWG

Output Value: Process

Output Detail: 0 to 5 kHz Floating Optocoupler Transistor, 7 mA Pulse - 50 mSec Width

Output Signal: Frequency

Supply Voltage: 24 Vdc

Input Range Note: 0 to 50 mV Differential Signal from full bridge Strain Gage, 10 V excitation provided

Number of Inputs: 1

Supply Power Type: DC

Excitation Voltage: 10 Vdc

Electrical Connection: Screw Terminal

Voltage Measurement Range: 0 to 50 mV
