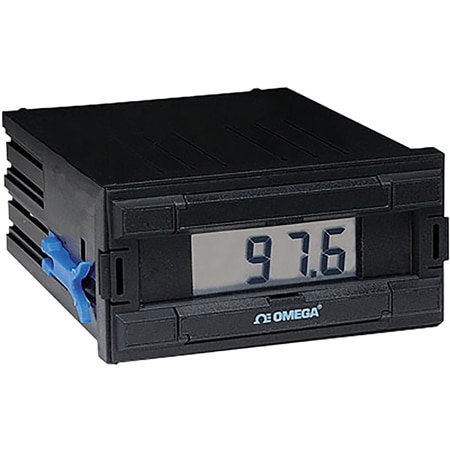

OMEGA DPM35A 1/32 & 1/8 DIN Process Indicators, Low Power, LCD Display (Current, Voltage, 3.5 Digit Single LED, 10 to 30 Vdc)

Width: 48 mm

Height: 24 mm

Weight: 60 g

Accuracy: ± 0.2 %

Polarity: Automatic, minus sign indicator

Input Type: Current, Voltage

Form factor: 1/32 DIN

Display Size: 10 mm (.39 in)

Display Type: 3.5 Digit Single LED

Reading Rate: 2.5 samples/sec

Accuracy Note: 0.2% ±1 count

Output Ripple: 0.1

Sampling Rate: 2.5 Hz (2.5 updates/second)

A/D Conversion: Dual-slope, average value

Supply Voltage: 10 to 30 Vdc

Number of Inputs: 1

Cutout Dimensions: 22.2 x 45 mm

Display Type Note: 3 1/2 digit, 0 to 1999; 7-segment, Red LED. Overrange: Positive = display blank, negative = “-” is displayed. Decimal Point: Jumper-selectable for 1.XXX, 1X.XX or 1XX.X.

Power Consumption: 0.6 W

Supply Power Note: Power: 10 to 30 Vdc, isolated

Supply Power Type: DC

Input Configuration: Bipolar single

Thermal Span Effect: < 50 ppm

Common Mode Rejection: 65 dB

Electrical Connection: Screw Terminal

Power Consumption Note: 0.6 W @ 24 Vdc

Temperature Coefficient: 2 µV/°C

Warm-Up to Rated Accuracy: 2 min

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
