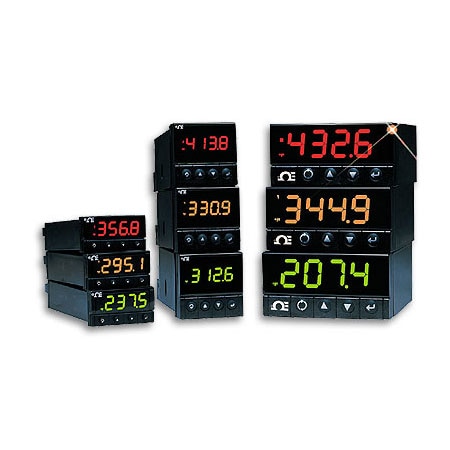

OMEGA DPI16 1/32, 1/16, 1/8 DIN, Programmable Temperature/Process Meters (1/16 DIN, 4 Digit LED)

Name: OMEGA DPI16 1/32, 1/16, 1/8 DIN, Programmable Temperature/Process Meters (1/16 DIN, 4 Digit LED)
Brand: OMEGA

ManufacturerOMEGA(View more products from this manufacturer)

ModelDPI16

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

CMRR: 120 dB

NMRR: 60 dB

Width: 96 mm

Height: 48 mm

Length: 127 mm

Weight: 159 g

Accuracy: ± 0.5 °C

Polarity: Unipolar

Approvals: UL, C-UL, UKCA, CE per 2014/35/EU

Frequency: 50 to 400 Hz

Isolation: Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test

Input Type: Thermocouple, RTD, Voltage, Current

Resolution: Temperature :1° /0.1° ; process : 10 µV

Form factor: 1/16 DIN

Display Type: 4 Digit LED

Reading Rate: 3/sec

Accuracy Note: ±0.5°C temp nominal; 0.03% rdg ±0.03% range process and strain (@25 °C );"Universal Temperature/Process Input Models;Thermocouple Accuracy:;Type J: 0.4°C (0.7°F);Type K: 1.0°C (1.8°F) and 0.4°C (0.7°F);Type T: 1.0°C (1.8°F) and 0.4°C (0.7°F);Type E: 1.0°C (1.8°F) and 0.4°C (0.7°F);Type R: 1.0°C (1.8°F) and 0.5°C (0.9°F);Type S: 1.0°C (1.8°F) and 0.5°C (0.9°F);Type B: 1.0°C (1.8°F) and 0.5°C (0.9°F);Type C: 0.4°C (0.7°F);Type N: -1.0°C (1.8°F) and 0.4°C (0.7°F);Type L: 0.4°C (0.7°F);RTD Accuracy;Pt, 0.00385, 100 ohm: ±0.5°C ±.02% rdg;Pt, 0.00385, 500 ohm: ±0.6°C ±.02% rdg;Pt, 0.00385, 1000 ohm: ±0.5°C ±.02% rdg;Pt, 0.00392, 100 ohm: ±0.5°C ±.02% rdg ;Pt, 0.00392, 500 ohm: ±0.5°C ±.02% rdg;(Nickel MIL-T-7990B) (FS required): 0.1°C (0.2°F);(Nickel MIL-T-7990B) (FS required): 0.3°C (0.5°F);Process Voltage Accuracy: 0.03% rdg;Process Current Accuracy: 0.03% rdg

Configuration: Single-ended

Display Range: -1999 to 9999

Input Current: 0 to 20 mA (5 Ω load)

Input Voltage: 0 to 100 mV, 0 to 1V, 0 to 10 Vdc

Output Detail: Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID, and ramp and soak Output 1: SPDT, can be configured as an alarm 1 output Output 2: SPDT, can be configured as an alarm 2 output SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous DC Pulse: Non-isolated; 10 Vdc @ 20 mA Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 Ω max Output 3 Retransmission Isolated Analog Voltage and Current Current: 10 V max @ 20 mA output Voltage: 20 mA max for 0 to 10 V output

Sampling Rate: 3 Hz (3 updates/second)

Step Response: 0.7 sec for 99.9%

A/D Conversion: Dual slope

Control Action: Action: Reverse (heat) or direct (cool)

Control Output: SPDT Relay, Alarm

Data Interface: N/A

Digital Filter: Programmable

Supply Voltage: 90 to 240 Vac

Impedance Input: 10 MΩ for 100 mV ;1 MΩ for 1 or 10 Vdc

Measuring Range: Universal Temperature/Process Input Models;Thermocouple: Type J: -210 to 760 °C;Type K: -270 to -160 °C and -160 to 1372 °C;Type T: -270 to -190 °C and -190 to 400 °C;Type E: -270 to -220 °C and -220 to 1000 °C;Type R: -50 to 40 °C and 40 to 1768 °C;Type S: -50 to 100 °C and 100 to 1768 °C;Type B: 100 to 640 °C and 640 to 1820 °C;Type C: 0 to 2320 °C;Type N: -250 to -100 °C and -100 to 1300 °C;Type L: -200 to 900 °C;RTD;Pt, 0.00385, 100 ohm: -200 to 850 °C;Pt, 0.00385, 500 ohm: -200 to 850 °C;Pt, 0.00385, 1000 ohm: -200 to 850 °C;Pt, 0.00392, 100 ohm: -200 to 850 °C ;Pt, 0.00392, 500 ohm: -200 to 850 °C;(Nickel MIL-T-7990B) (FS required): 0 to 200 °C;(Nickel MIL-T-7990B) (FS required): -40 to 300 °C ;Process Voltage: 0 to 100 mV, 0 to 1V, +100 mV, 0 to 10V;Process Current: 0 to 20 mA (4 to 20 mA)

Span Adjustment: 0.001 to 9999 counts

Thermal Effects: -1999 to 9999

Number of Inputs: 1

Cutout Dimensions: 45 mm

Decimal Selection: 3-Position

Enclosure Ratings: IP65, NEMA Type 4X

Relative Humidity: 0.9

Supply Power Note: 90 to 240 Vac ±10%, 50 to 400 Hz*, 110 to 300 Vdc, equivalent voltage

Supply Power Type: AC

Linearization Points: Up to 10

Additional Features 1: Programmable 3 Color Display

Electrical Connection: Screw Terminal
