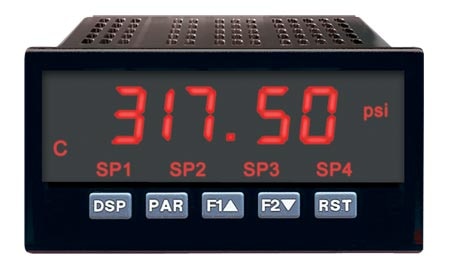

OMEGA DP63800-E 1/8 DIN Digital Panel Meters For Process Inputs (10 Vdc, 5 Digit LED, 85 to 250 Vac)

Keypad: 3 programmable function keys, 5 keys total

Memory: Non-volatile EEPROM retains all programmable parameters and display values

Weight: 295 g

Accuracy: ± 0.12 % of rdg ± 3 mV

Functions: Setpoint Output On/Off Delay Time: 0 to 3275 seconds;Analog Output Update Rate: 0 to 10 s ;Max/Min Capture Delay Time: 0 to 3275 seconds

Isolation: 2300 Vrms for 1 min to all inputs and outputs

Input Type: 10 Vdc

Form factor: 1/8 DIN

Altitude,Max: Up to 2000 m

Display Size: 14.2 mm (0.56 in)

Display Type: 5 Digit LED

Display Color: Red, Green

Overload, Max: 300 V

Sampling Rate: 60 Hz (60 updates/second)

Step Response: 200 ms max to within 99% of final readout value (digital filter and internal zero correction disabled); 700 ms max (digital filter disabled, internal zero correction enabled)

A/D Conversion: 16-bit resolution

Supply Voltage: 85 to 250 Vac

Conversion Rate: 20 readings/sec

Impedance Input: 500 Ω

Number of Inputs: 1

Cutout Dimensions: 49.5 x 96.5 mm

Display Type Note: 5-digit, 14.2 mm (0.56") red sunlight-readable or standard green LEDs, (-19999 to 99999) Display Update Rate: 1 to 20 updates/s

Enclosure Ratings: IP65, NEMA Type 4X

Relative Humidity: 0 to 85% max RH non-condensing

Supply Power Note: AC Versions: AC Power: 85 to 250 Vac, 50/60 Hz, 15 VA Isolation: 2300 Vrms for 1 min to all inputs and outputs DC Power: 11 to 36 Vdc, 11 W AC Power: 24 Vac, ± 10%, 50/60 Hz, 15 VA Isolation: 500 Vrms for 1 min to all inputs and outputs (50V working)

Supply Power Type: AC

Display Resolution: 1 mV

Additional Features 1: Output Modules : For complete specifications, see LDP63100 Series online

Electrical Connection: Screw Terminal

Programmable Functions: Min/Max Capture Delay, On/Off Delay, Output, setpoint limits, Update Rate

Sensor/Transmitter Power: 24 Vdc, ±5%, regulated, 50 mA max

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -40 °C

Operating Temperature Note: 0 to 50°C (32 to 122°F) [0 to 45°C (32 to 113°F) with all 3 plug-in cards installed]

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
