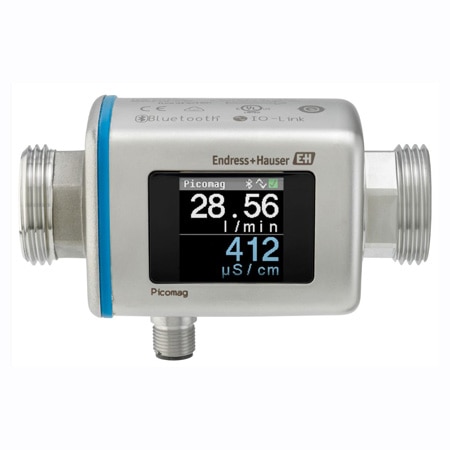

OMEGA DMA50-AAAAA1 Picomag Magnetic Flow Meter w/Temperature & Conductivity Sensor (± 0.8 %, 85 °C, 198.1 GPM, 2 in, BSPP Male, 316L Stainless Steel, Polycarbonate, 18 to 30 Vdc, M12 4 pin Male)

Accuracy: ± 0.8 %

Approvals: UL, Drinking water approval

Materials: 316L Stainless Steel, Polycarbonate

Cable Length: 5 m

Conductivity: ± 5 µS/cm

Display Note: 1.4" TFT color display, auto-rotatable (dependent on orientation)

Display Type: TFT LCD

Accuracy Note: ± 0.8% o.r. ± 0.2% o.f.s. (of full scale)

Output Detail: 4 to 20 mA, 2 to 10 V, Pulse

Output Signal: Current, Voltage, DC Pulse

Repeatability: ± 0.2%

Data Interface: Bluetooth, IO-Link

Supply Voltage: 18 to 30 Vdc

Enclosure Ratings: IP65, IP67

Materials, Wetted: 316L Stainless Steel, FKM, PEEK

Number of Outputs: 3

Power Consumption: max 3 W

Supply Power Type: DC

Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater

Electrical Connection: M12 4 pin Male

Operating Pressure, Max: 232 psi

Process Connection Note: Standard: external thread (G½", G¾", G1", G2") Optional: adapter sets for internal (G) and external (R, NPT) threads, Tri-clamp, Victaulic

Process Connection Size: 2 in

Process Connection Type: BSPP Male

Process Temperature, Max: 85 °C

Process Temperature, Min: 0 °C

Volumetric Flow Rate, Max: 198.1 GPM

Volumetric Flow Rate, Min: 0.4 GPM
