CMRR: 120 dB
NMRR: 60 dB
Width: 3.78 in
Height: 1.89 in
Length: 5 in
Weight: 127 g
Accuracy: ± 0.03 %
Mounting: Panel
Polarity: Unipolar
RTD Type: 100/500/1000 Ω Pt
Approvals: UL, C-UL, UKCA, CE per EN61010- 1:2001, F
Isolation: Power to Input/Output: 2300 Vac per 1 minute test For Low Voltage Power Option: 1500 Vac per 1 minute test Power to Relay/SSR Output: 2300 Vac per 1 minute test Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test RS232/485 to Input/Output: 500 Vac per 1 minute test
Input Type: Single Ended, Voltage, Current, Strain, Temperature
Resolution: 10/1µV
Form factor: 1/8 DIN

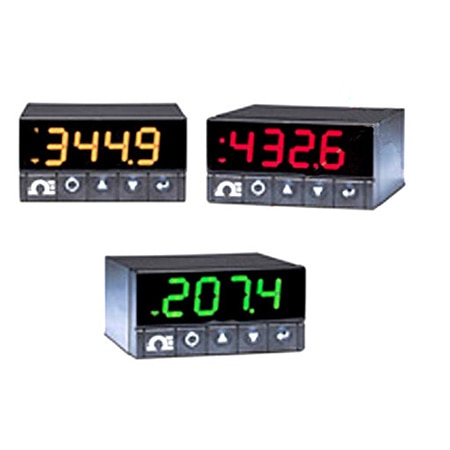

Display Note: 4-digit 9-segment LED 10.2 mm (0.40"); i32, i16, i16D, i8DV 21 mm (0.83"); i8 10.2 mm (0.40") and 21 mm (0.83"); i8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units
Display Type: LED
Reading Rate: 3/sec
Output Detail: SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous, DC Pulse: Non-isolated; 10 Vdc @ 20 mA
Output Signal: DC Pulse
Sampling Rate: 3 Hz (3 updates/second)
Step Response: 0.7 s for 99.9%
Control Action: Action: Reverse (heat) or direct (cool)
Control Output: SSR Relay
Data Interface: N/A
Digital Filter: Programmable
Supply Voltage: 12 to 36 Vdc, 24 Vac
Impedance Input: 10 MΩ for 100 mV;1 MΩ for 1V or 10 Vdc
Input Range Note: 0 to 100 mVdc,-100 mVdc to 1 Vdc, 0 to 10 Vdc, 0 to 20 mA
Measurement Type: Current, Strain, Temperature, Voltage
Number of Digits: 4
Number of Inputs: 5
Number of Relays: 1
Cutout Dimensions: 1.772 x 3.622 in
Decimal Selection: 0,001, 0,01, 0,1, None
Enclosure Ratings: IP65, NEMA Type 4, NEMA Type 4X
Offset Adjustment: -1999 to 9999
Relative Humidity: 90% RH non-condensing
Sensor Excitation: 24 Vdc @ 25 mA (not available for low-power option)
Supply Power Note: Low Voltage Power Option: 24 Vac**, 12 to 36 Vdc for DPi/CNi/DPiS/CNiS; 20 to 36 Vdc for dual display, ethernet and isolated analog output from qualified safety approved source
Supply Power Type: DC
Thermocouple Type: J, K, T, E, R, S, B, C, N, L
Linearization Points: Up to 10
Set Point Adjustment: Menu Configurable
Electrical Connection: Screw Terminal
Temperature Stability: 50 ppm/°C
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
Analog-to-Digital Technique: Dual slope
Retransmission/Analog Output: Solid State Relay/0.5 A at 120/240 Vac continuous Pulsed Driver 10 Vdc at 20 mA /for use with external SSR
