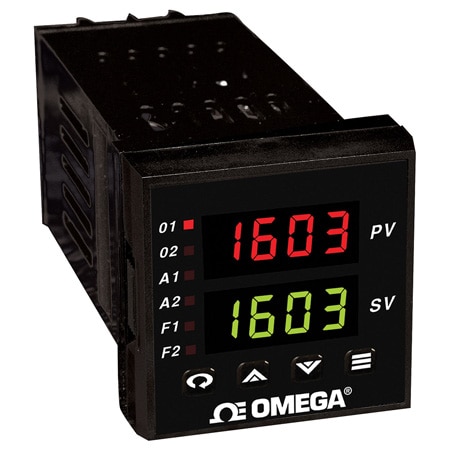

CMRR: 100 dB
Loops: 0 to 99
Width: 53.3 mm
Height: 53.3 mm
Length: 8.21 mm
Weight: 226 g
Accuracy: ± 0.2 %
Contacts: Twin bifurcated
Input Type: Thermocouple, RTD, mA, Voltage
Form factor: 1/16 DIN
Display Size: 9.2 mm (.36 in)
Display Type: 4 Digit LED
Accuracy Note: ± 0.2% FS, ± 1 digit
Events/Alarms: 1 to 8
Memory Backup: Solid State
Output Detail: Relay, 1A SSR;Output #1: Reverse- or direct-acting, configured from menu Output #2: Reverse- or direct-acting, configured from menu Mechanical Relay: Rated 5 A @120 Vac, 3 A @ 240 Vac, normally open (NO), normally closed (NC) (output 1); rated 5 A @120 Vac, 3 A @ 240 Vac, NO (output 2) Current: 4 to 20 mA, 500 Ω maximum (suffix F1, F2); 4 to 20 mA, 1000 Ω maximum (suffix FH1, FH2) Voltage: 20 Vdc pulse Solid State Relay: SSR, 120/240 Vac, zero voltage switched, rated 1 A continuous, 10 A surge @ 25°C (77°F) Transducer Power Supply: 5, 10, 12, 15 Vdc ± 10% ;Alarm Output:Mechanical relay rated 5 A @ 120 Vac, 3 A @ 240 Vac, NO; optically isolated SSR rated 1 A, 120/240 Vac @ 25°C (77°C); DC alarms, 24 Vdc
Output Signal: None
Ramp Setpoint: 1 to 9999 minutes
Ramp and Soak: 8 Ramp & Soak
Repeatability: ± 1 count
Sampling Rate: 10 Hz (10 updates/second)
Control Output: SPDT Relay, SSR Relay
Data Interface: None
Ramp/Soak Time: 0 to 9999 minutes
Supply Voltage: 100 to 250 Vac
Input Type Note: Input Type: See input table on next page Digital Input: For remote setpoint, remote standby or ramp/soak run and hold Thermocouple Lead Resistance: 100 Ω maximum for rated accuracy Decimal Position: Selectable
Measuring Range: Type J (Iron-Constantan): -200 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -270 to 1354°C, Type T (Copper-Constantan): -270 to 400°C, Type N (OMEGALLOY®) : -268 to 1300°C, Type R (Pt/13%Rh-Pt) : -50 to 1768°C, Type S (Pt/10%Rh-Pt) : -50 to 1768°C, Type B (Pt/30%Rh-Pt/6%Rh) : 0 to 1820°C, Type C (W/5%Re-W/26%Re) : 0 to 2315°C, Type E (CHROMEGA®-Constantan) : -150 to 1000°C, NNM 18% molybdenum vs nickel -06% cobalt : 0 to 1410°, Platinel II : -100 to 1232°C, RTD ((3-wire) 100 Ω Pt) : -200 to 850°C, RTD ((3-wire) 100 Ω Pt) : -199.9 to 375.0°C, 0 to 1V : Scalable (-1999 to 9999) selectable 1 to 5V : Scalable (-1999 to 9999) selectable 0 to 5V : Scalable (-1999 to 9999) selectable 0 to 10V : Scalable (-1999 to 9999) selectable 10 to 50 mV : Scalable (-1999 to 9999) selectable 0 to 50 mV : Scalable (-1999 to 9999) selectable 0 to 10 mV : Scalable (-1999 to 9999) selectable 0 to 100 mV : Scalable (-1999 to 9999) selectable 4 to 20 mA : Scalable (-1999 to 9999) selectable 0 to 20 mA : Scalable (-1999 to 9999) selectable
Remote Setpoint: N/A
Measurement Type: Current, Temperature, Voltage
Number of Inputs: 1
Cutout Dimensions: 45 x 45 mm
Display Type Note: Dual LED—4-digit, orange: process display; green: menu/parameter display; 9.2 mm (0.36")
Enclosure Ratings: IP65, NEMA Type 4X
Relative Humidity: 90% RH, non-condensing
Supply Power Note: 100 to 250V, 50/60 Hz (single-phase); 120 to 250 Vdc, 24 Vac/24 Vdc (optional)
Supply Power Type: AC
Depth Behind Panel: 100 mm
Setpoint Resolution: 1 count/0.1 count
Electrical Connection: Screw Terminal
Series Mode Rejection: >70 dB
Temperature Stability: 5 μV/°C Max
Control Characteristics: Set point Limits: Limited to configured range for thermocouple and RTD; limited to scaled range; Alarms: Adjustable for high/low; selectable process or deviation; Rate (Derivative): 0 to 2400 seconds; Reset (Integral): 0 to 9600 seconds; Cycle Time: 0.2 to 120 seconds; Proportional Band: 1 to span of sensor; Dead band: Negative span to positive span of sensor; Hysteresis: 1 to span of sensor; Autotune Damping: Adjustable (low, normal, or high); Ramp to Set point: 1 to 9999 minutes; Autotune: Operator-initiated from front panel; Manual Control: Operator-initiated from front panel
Number of Control Outputs: 2
Cold Junction Compensation: 0.05°C/°C ambient
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
Hardware and Software Requirements, Min: CN8-SW (Optional Software): Minimum Hardware and Software Requirements: IBM PC or 100% compatible, Windows 95/98/NT; RS485 interface or RS232 to RS485 converter; Software Compatibility: CN8200 Series controllers; Software Capability: Supports up to 254 CN8200 Series controllers
