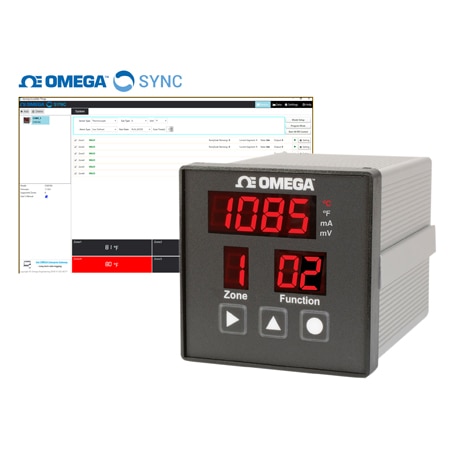

OMEGA CN616A-DC 1/4 DIN 6 Zone Universal Input Autotune Ramp & Soak Controller (Dual 3.5 Digit LED, RS232, 1/4 DIN)

Power: DC Units: 1.5k Vdc,Power to Alarm Relay: 2.3k Vac (3.2k Vdc).Power to Serial: 2.3k Vac (3.2k Vdc),Input to Serial: 500 Vac (720 Vdc)

Width: 95 mm

Length: 95 mm

Weight: 725 g

Accuracy: ± 1 mV

Diameter: 135 mm

Approvals: ECCN: EAR99 Safety: 2014/35/EU EMC: 2014/30/EU RoHS: 2011/65/EU UL File No: E209855 UL/cUL Listed

Frequency: 50/60 Hz

Scan Rate: 400 ms

Input Type: Thermocouple, RTD, Voltage, Current

Resolution: 1°, 1 mV, 0.01 mA

Form factor: 1/4 DIN

Display Size: 15 mm (0.60 in)

Display Type: Dual 3.5 Digit LED

Output Detail: 6 Common Drain DC Pulse Outputs Switches up to 36Vdc and 1A, 5Vdc @25mA per channel

Ramp and Soak: Multiple Ramp & Soak

A/D Conversion: 24-bit Sigma Delta

Control Output: Alarm Relay

Data Interface: RS232

Supply Voltage: 120/240 Vac

Input Type Note: TC: J, K, T, E, R, S, B, C, N RTD: 2 wire PT100, 0.00385 CU10, 0.00427 NI120, 0.00672

Measuring Range: Process Voltage: 0 to 1000 mV Process Current: 0 to 24.00 mA Thermocouple Type J: -150 to 0°C and 0 to 1200°C Type K: -150 to 0°C and 0 to -1372°C Type T: -150 to 0°C and 0 to 400°C Type E: -150 to 0°C and 0 to 1000°C Type R: -50 to 0°C and 0 to 1788°C Type S: -50 to 0°C and 0 to 1768°C Type B: 150 to 700°C and 700 to 1820°C Type C: 0 to 2320°C Type N: -150 to 0°C and 0 to 1300°C RTD (2 wire) Pt, 0.00385, 100 Ω: -200 to 850°C Cu, 0.00427, 10 Ω: -200 to 260°C Ni, 0.00672, 120 Ω: -80 to 260°C

Measurement Type: Current, Temperature, Voltage

Number of Inputs: 6

Cutout Dimensions: 92 x 92 mm

Display Type Note: 3.5 Digit Dual Display

Electrical Output: 4 to 20 mA, 0 to 1 Vdc

Enclosure Ratings: NEMA Type 1

Number of Outputs: 6

Power Consumption: 3 W

Supply Power Type: DC

Depth Behind Panel: 140 mm

Data Interface Note: Selectable RS232 / RS485 Modbus RTU

Channel Display Time: 1 to 99 sec

Input Control Signal: 9 to 36 Vdc, 3 W max

Additional Features 1: 2 Alarm Outputs

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C
