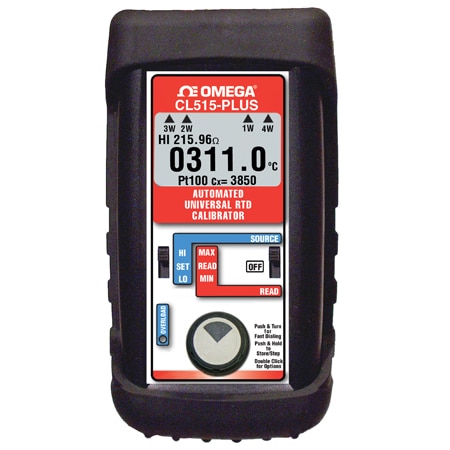

OMEGA CL515-PLUS High Accuracy RTD Auto-Connect Display Calibrator & Thermometer

Width: 76 mm

Height: 41 mm

Length: 143 mm

Weight: 0.34 kg

Accuracy: ± 0.015 %

Weight Note: 0.34 kg (12.1 oz) including boot and batteries

Battery life: 50 hr

Display Type: LCD

Voltage Read: Excitation: Current 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB

Accuracy Note: ± (0.015% of reading + 0.05 Ω)

Supply Voltage: 6 Vdc

Voltage Source: Accuracy: From 1 to 10.2 mA external excitation Current ± (0.015% of Reading + 0.05 Ω) Below: 1 mA of external excitation Current: ± (0.015% of reading + 0.025 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range <41Ω: 10.2 mA maximum; steady or pulsed/intermittent 410 to 4001Ω: 1 mA maximum; steady or pulsed/intermittent Pulsed Excitation: Current compatibility DC to 0.01 second pulse width 0.025 mV

Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

Temperature Drift: ± 0.01%

Thermocouple Type: None

Type of RTD Signal: 100 Ω

Additional Features 1: Source Only

Relative Humidity Note: 10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%

Relative Humidity, Max: 0.9

Relative Humidity, Min: 10%

Temperature Drift Note: ± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F)

Operating Temperature Note: Nominal Temperature: 23°C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -25 °C
