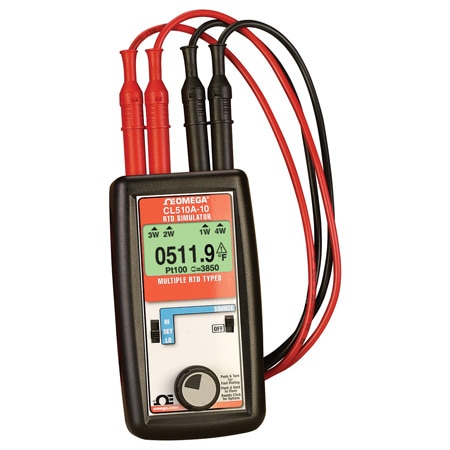

OMEGA CL510A-1 PT100 & PT1000 RTD Simulators with multiple or single curves

Width: 69 mm

Height: 45 mm

Length: 126 mm

Weight: 0.24 kg

Accuracy: ± 0.015 %

Weight Note: 0.24 kg (8.4 oz) (including batteries)

Battery life: 50 hr

Display Type: LCD

Accuracy Note: ± (0.015% of reading + 0.05 Ω)

Supply Voltage: 6 Vdc

Voltage Source: Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of rdg + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.015% of rdg + 0.01 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range, Steady or Pulsed/Intermittent: <410 Ω: 10.2 mA max 410 to 001 Ω: 1 mA max Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width

Display Type Note: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

Temperature Drift: ± 0.05 Ω/°C

Battery Indication: A low battery indication is displayed when the battery voltage drops below the operating level

Type of RTD Signal: 100 Ω

Additional Features 1: Supports 1 RTD curve

Relative Humidity Note: Relative Humidity Range, 10% ≤RH: ≤90%: 0 to 35°C (32 to 95°F), non-condensing ≤70%: 35 to 60°C (95 to 140°F), non-condensing

Relative Humidity, Max: 0.9

Relative Humidity, Min: 10%

Over-Voltage Protection: Over-voltage protection to 60 Vdc (rated for 30 sec)

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -25 °C
