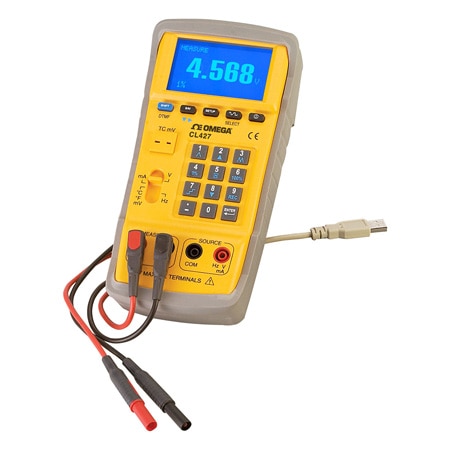

OMEGA CL427 Multifunction Calibrator & Arbitrary Function Generator

Width: 98.7 mm

Height: 56 mm

Length: 214 mm

Weight: 650 g

Input Type: Milliamp, Millivolt, Volts, Sine Wave, Square Wave, Triangular Wave, Thermocouple

Measuring Range: Type K : -200 to -150 °C, -150 to 0 °C, 0 to 1000 °C ,1000 to 1370 °C, Type J : -200 to -150 °C, -150 to 0 °C, 0 to 1050 °C, Type E : -200 to -150 °C, -150 to 0 °C, 0 to 850 °C, Type T : -200 to -150 °C, -150 to 0 °C, 0 to 400 °C, Type R/S : 0 to 500 °C, 500 to 1760 °C, Type N : -200 to 0 °C, 0 to 1300 °C, Type L : -200 to 0 °C, 0 to 900 °C, Type U : -200 to 0 °C, 0 to 600 °C, Type B : 600 to 800 °C, 800 to 1000 °C, 1000 to 1820 °C, Type C : 0 to 1800 °C, 1800 to 2310 °C, mV : -10 to 70 mV

Relative Humidity: Storage : 75% RH,Operating : 85% RH

Supply Power Note: AC 110V, 60 Hz input; or AC 220V, 50/60 Hz input; DC 15V/0.5 A output

Thermocouple Type: J, K, T, E, R, S, B, C, N, L, U

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
