Bend: Straight
Accuracy: Class B
Wire Type: Stranded
Insulation: PFA with Armored Cable

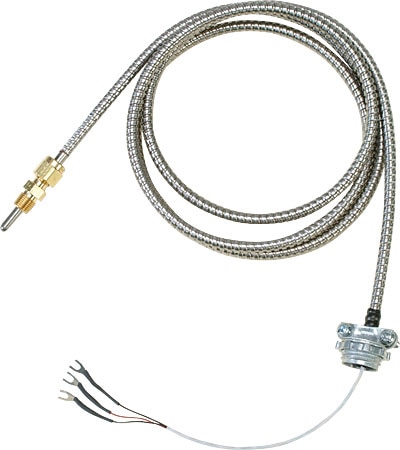

Probe Type: Extruder RTD Probes with Compression Fittings
Wire Gauge: 26 AWG
Cable Length: 60 in
Probe Length: 4 in
Probe Diameter: 0.1875 in
Number of Wires: 3
Sensing Element: 100 Ω Class “B” DIN Platinum Element
Sheath Material: 304 Stainless Steel
Nominal Resistance: 100 Ω
Cold End Termination: 1
Electrical Connection: Spade Lugs
Process Connection Size: 1/8 in
Process Connection Type: NPT Male
Temperature Probe Style: Immersion Probe
Temperature Sensor Type: RTD
Process Temperature, Max: 260 °C
Process Temperature, Min: -50 °C
Nominal Resistance/Curve Note: 100 Ω Class “B” Thin-Film DIN Platinum Element
