Direct access to our certified experts
Bend: Straight
Accuracy: Class A
Wire Type: Stranded
Insulation: PFA with Armored Cable

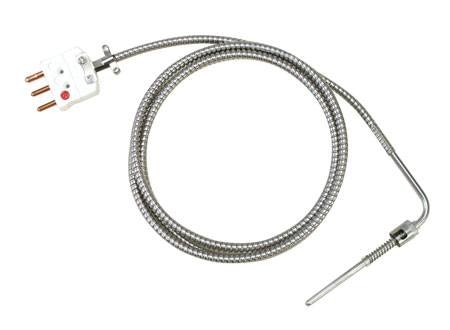

Probe Type: Bayonet Style RTD Probes
Wire Gauge: 26 AWG
Cable Length: 360 in
Probe Length: 5 in
Probe Diameter: 0.1875 in
Number of Wires: 3
Sensing Element: 100 Ω Class “A” DIN Platinum Element
Sheath Material: 304 Stainless Steel
Nominal Resistance: 100 Ω
Cold End Termination: 1
Electrical Connection: Spade Lugs
Process Connection Type: Bayonet Fitting
Temperature Probe Style: Immersion Probe
Temperature Sensor Type: RTD
Process Temperature, Max: 260 °C
Process Temperature, Min: -200 °C
Nominal Resistance/Curve Note: Precision 100 Ω Class “A” Thin Film DIN Platinum Element
