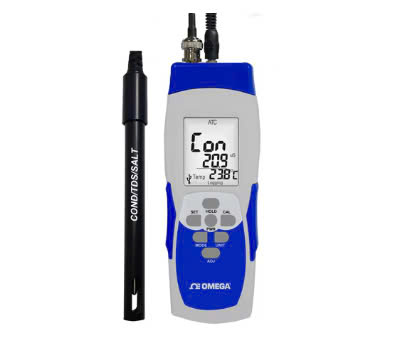

OMEGA CDH-SD11 Conductivity/TDS/Salinity Meter (30 µS/cm~20 mS/cm, 0~199.9 ppt TDS, Salt 0~42.0 ppt)

Parameter: Cond./EC/TDS /Salt

Data logger sampling time Setting range: Au to: 0, 2 secs, 5 secs, 10 secs, 15 secs, 30 secs, 60 secs, 120 secs, 300secs, 600 secs, 900 secs, 1800 secs, 1Hr; Manual Press the ADJ button once will save data one time. Set the sampling time to 0 second.

Memory Card: SD memory card 8G

Data Hold: Freeze the display reading.

Meter dimension: 175mm x 58mm x 32mm (With BNC connector)

Power supply: AAA batteries x 3 pcs / 9V AC/DC adaptor (optional)

Temperature: 0~90

Temp. accuracy: ±0.5

Conductivity

Measurement range: 30 uS/cm~20 ms/cm (K=1) Supplied; 500 uS/cm ~199 mS/cm (K=10) Option

Accuracy (±1% of full scale + 1 digit): ±199.71 (K=1); ±1985.01 (K=10)

Cond Calibration: 1 point 1413 uS calibration (K=1); 1 point 12.8 mS calibration (K=10)

Resolution: 0~1999 uS/cm (1)

Dimension: 12x120mm

Electrode body: ABS

Sensor type: Graphite plate

TDS (Total Dissolved Solids)

Measurement range: 0 to 19.99 ppm; 0 to 199.9 ppm; 0 to 1999 ppm; 0 to 19.99 ppt; 0 to 199.9 ppt

Accuracy: ±1% of full scale + 1 digit

Resolution: 0.01 ppm, 0.1 ppm, 1 ppm ; 0.01 ppt, 0.1 ppt

SALT

Measurement range: 0~42.0 ppt (Sea water)

Accuracy: ±1% of full scale + 1 digit

Resolution: 0.1 ppt

ATC Temperature sensor Probe port : 3.5 mm diameter phone jack

Cable length: 1 M

SUPPLIED

Meter

Electrode x 1pc (Cond./EC/TDS/Salt)

Battery-AAA x 3 pcs

1413uS buffer solution (Cond. K=1) x1 or 12.88mS buffer solution (Cond. K=10)

9V adaptor (optional)

Black carrying case

Operation manual

8G SD card
