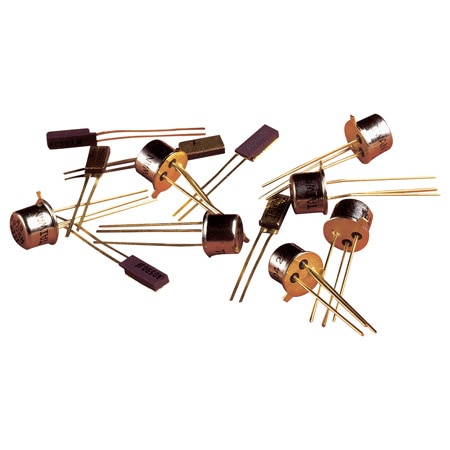

OMEGA AD590JF Solid State Temperature Sensor with a Linear Current Output (150 °C)

Accuracy: ± 1.5 °C (± 2.7 °F)

Repeatability: ± 0.1°C max

Absolute Error: Without external

Supply Voltage: 4 to 30 Vdc

Forward Voltage: 44 V

Long Term Drift: ± 0.1°C/month max

Reverse Voltage: -20 V

Housing Material: Flat Pack Case

Breakdown Voltage: ± 200 V

Calibration Error: ± 5.0 °C

Additional Features 1: Flat Pack Case

Lead Temperature, Max: 300 °C

Calibration Adjustment: ± 10.0 °C

Nominal Current Output: 298.2 µA

Temperature Coefficient: 1 µA/K

Temperature Sensor Type: Silicon Diode

Process Temperature, Max: 150 °C

Process Temperature, Min: -55 °C

Calibration Adjustment Note: J: ± 10.0°C max (K: ± 5.5°C); W/25°C error set to zero J: ± 3.0°C max (K: ± 2.0°C)
