Materials: Glass reinforced phenolic, Chromium-Nickel, Polyimide
Pack Size: 10
Elongation: 10000 µm to 15000 µm

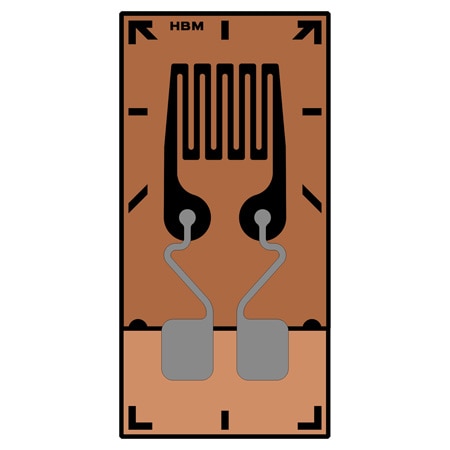

Grid Style: Linear
Grid Width: 3.4 mm
Grid Length: 6 mm
Gauge Factor: 2.2
Carrier Width: 5.4 mm
Input Voltage: 16 Vac
Carrier Length: 14.8 mm
Grid Thickness: 5 μm
Mechanical Life: 10⁷ cycles
Bend Radius, Min: 5 mm
Carrier Thickness: 35 μm
Grid Length Range: 6 mm
Nominal Resistance: 350 Ω
Mechanical Life Note: 10⁷ cycles at 2000 µm/m, 10⁶ cycles at 2200 µm/m, 10⁴ cycles at 3100 µm/m
Resistance Tolerance: ±0.3%
Electrical Connection: Solder Pads
Gauge Factor Tolerance: ± 0.7 %
Encapsulation Thickness: 25 μm
Temperature Compensation: 10.8 ppm/K
Operating Temperature, Max: 300 °C
Operating Temperature, Min: -200 °C
