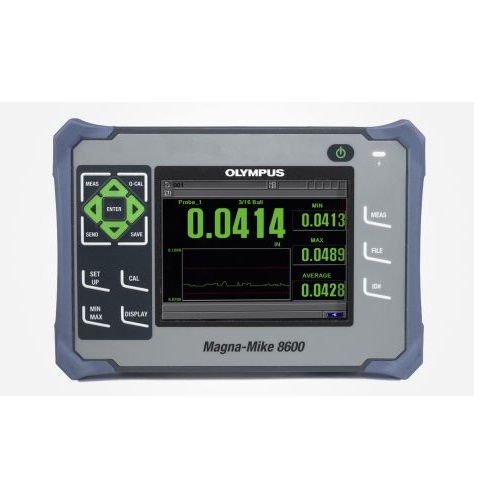

Olympus Magna-Mike 8600 Thickness Gauge (0.001~25.4mm; IP67)

GENERAL

Measures from 0.001 mm (0.0001 in.) to 25.4mm (1 in.)

Overall dimensions: 236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.)

Weight: 1.68 kg (3.72 lb), including lithium-ion battery

Keypad: English, Japanese, Chinese, International

Languages: English, Spanish, French, German, Japanese, Chinese, Portuguese, Swedish, Norwegian, Dutch, Polish, Russian, Hungarian, Czech, Italian

Data storage: Onboard and removable 2 GB microSD™ card

Battery life (Optional): 16 h (lithium-ion)

Power requirements: AC Mains: 100 VAC to120 VAC, 200 VAC to 240 VAC

Display type: Full VGA (640 x 480 pixels) transflective color LCD

Display dimensions (W x H, Diag.): 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)

Min/max capture mode: Captured at 60 Hz measurement rate

Display update rate: 4, 8, 16, and 20 Hz

Alarm: High and low alarms

Resolution: 0.1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.) (depending on thickness range)

Probes

86PR-1: Standard straight probe 82.30 mm (3.24 in.) long and 18.62 mm (0.733 in.) dia.

86PR-2: Right angle probe head 58.84 mm x 18.62 mm, length 178.57 mm (2.32 in. x 0.733 in. dia., length 7.030 in.)

86PR-3: Low-profile articulating probe 241.3 mm (9.5 in.) long

Environmental Testing

Vibration: MIL-STD-810G, Method 514.6, Procedure I

Drop: MIL-STD-810G, Method 516.6, Procedure IV

Shock: MIL-STD-810G, Method 516.6, Procedure I

Designed for IP67: Yes

Inputs/Outputs

USB: USB 2.0 peripheral port

RS-232: Yes

Memory card: Maximum capacity: 64 GB removable microSD memory card

Video output: VGA output standard

Foot switch (optional): Programmable (Save, Send, Meas or Q-Cal)

Operation temperature: –10°C to 50°C (14°F to 122°F)
