OKO TOFD 2.2 PRO ultrasonic weld testing equipment

Testing objects parameters
Thicknesses: 6 - 50 mm (.25 - 2 in)
Diameter for cylindrical objects: from 300 mm (12 in) to flat
Diameter for spherical objects: from 10 m (33 ft) to flat
Profile types: any
Scanner (with all electronics onboard)
Dimensions (L×W×H): 380×310×240 mm
Weight: 7,5 kg
Number of TOFD pairs: 1
Coupling liquid supply: individually for each probe
Compatible probes and wedges
Frequencies: 1-15 MHz
Angles (L-wave): 45°, 60°, 70°
Measurement
Number of cursors: 2
Types of cursors: Conventional (cross) Hyperbolic
Manual positioning: Yes
Automatic positioning: Yes
Absolute measurements: Yes
Relative measurements: Yes
Indications table: Yes
Indications parameters: X, X1, X2, dX Z, Z1, Z2, dZ Type : (Point, Top, Bottom, Middle) Amplitude
Units: mm / in / us
Output fields: 5
Basic delivery set:

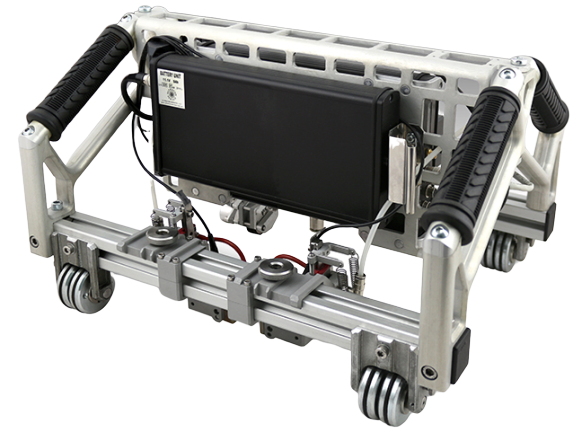

TOFD 2.2 PRO scanner (with electronics, battery and transducers on board);
Software for MS Windows notebook/tablet;
Charger;
Manual guide (hard copy);
Hard case.
Available at option:
Rugged Notebook or Tablet PC with pre-installed TOFD Software;
Additional transducers (see tab "Transducers");
Portable water tank (16l/3,52gal) with motorized pump (2-4,5Bar);
Extra battery.
