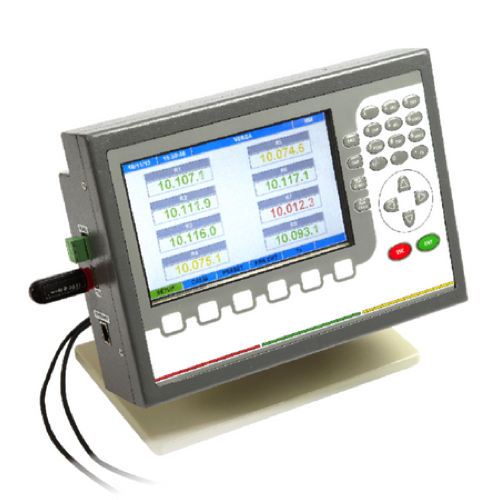

Octagon Octa-Gage Multi Channel Electronic Gauging Displays (2/4/6/8 LVDT Channels)

Input Channels: 2/4/6/8 LVDT Channels

Type: Standard/Fanuc Interface (OctaGage Transmit data to Fanuc controller 0-1 / Power Mate/16/18 Series)

Resolution: 0.1 μm / 0.2 µm / 0.5 µm / 1µm / 2µm / 5µm / 10µm

Units: mm

Setup: 100

Measurement Modes: Current, Min, Max, TIR, AVG

Result Formula Editor: Result formula can be edited for combinations of LVDT channels and/or other results

Indications: Pass, Fail, Warning

Calibration: Single / Double Master configurable

Scaling: Auto / Manual

User Interface: USB 2.0 Compliant (for mass storage device)

PC Interface: RS-232, RS-485, Ethernet (For Firmware Upgrades Only)

Digital Input/Outputs: 8 Inputs + 8 Outputs, Isolated, Open collector

Digital Views: Digital Readout / Dial / Bar graph / Run Chart

Memory: Inbuilt micro SD card of 4 GB for data storage

Footswitch Interface: Available
