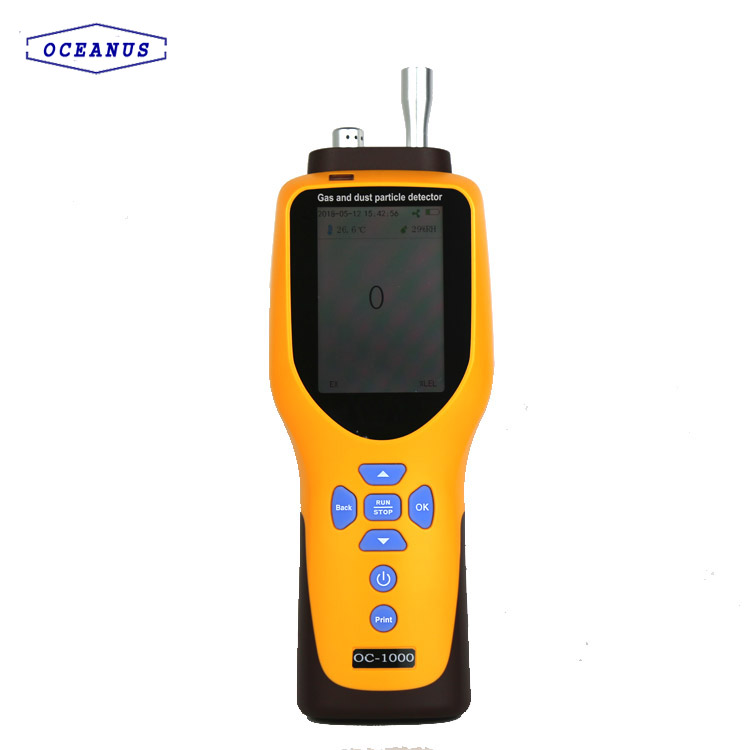

Oceanus OC-1000 Multi pump-suction gas detector (CO, O3, NO2, SO2)

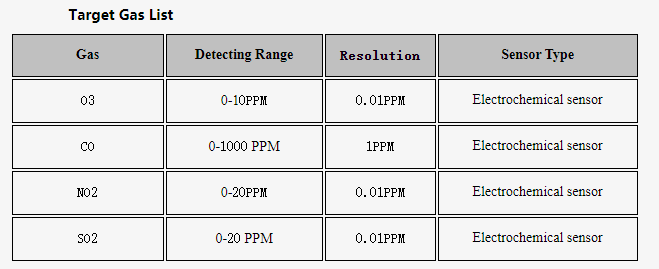

Gas type: Combustible gas, oxygen, toxic gas

Working principle:

Catalytic combustion sensor for combustible gas

Electrochemical sensor for toxic gas and oxygen

Particle: Optional the PM2.5 laser particle sensor

Measuring range: Normal range or be customized

Resolution: Depended on the gas types

Precision: 3%F.S

Data storage: About 100000 group of data capacity

Printing: Optional printner function

Response time: ≤20S/10S

Recovery time: ≤20s

Repeatability: ≤±1%

Linearity: ≤±1%

Zero drift: ≤±1%(F.S/year)

Display: LCD dot matrix display

Concentration unit: ppm or mg/m3

Alarm mode: Audible, visual, vibration

Working temperature: -40~120℃

Working humidity: 0-95%RH(non-condensing)

Working pressure: -30Kpa ~ 100Kpa

Explosion-proof grade: Ex ia IIC T4

Protection grade: IP65

Shell material: ABS+PC

Dimensions: 220*88*55mm

Weight: 0.5KG

Standard accessory: Particle filter, box, instruction, USB charger, data line, calibration cap.
