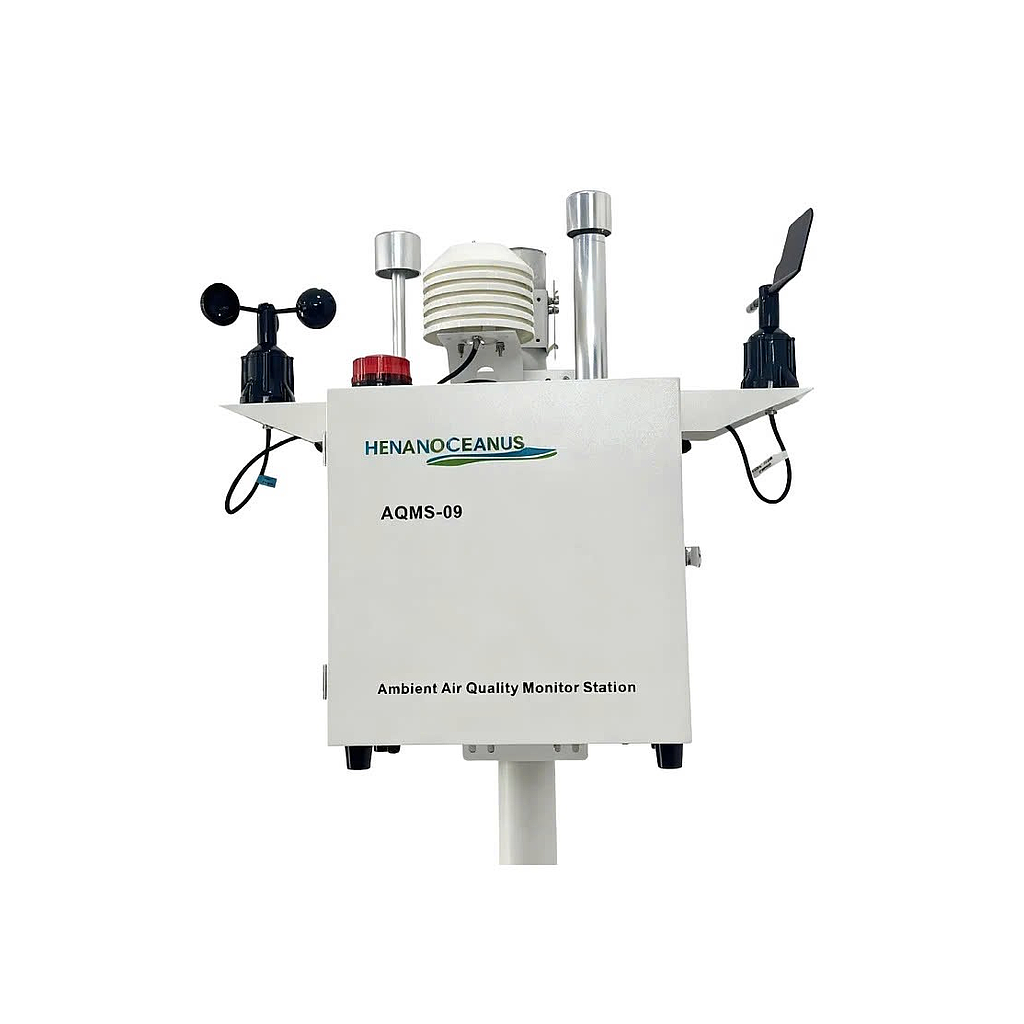

Oceanus AQMS-09 Ambient Air Quality Monitor Station

Temperature:

Range: -40 ~ 123.8℃

Resolution: 0.01 ℃

Accuracy: ±0.4 ℃

Humidity

Range:0 ~ 100%RH

Resolution:0.01 %RH

Accuracy: ±3 %RH

Air Pressure

Range:70 ~ 120kPa

Resolution: 1 Pa

Accuracy: ±250 Pa

Wind Speed

Range:0 ~ 32.4m/s

Resolution:0.1 m/s

Accuracy: ±1 m/s

Wind Direction

Range:0 ~ 359°

Accuracy:1°

Accuracy: ±1°

Power Supply: AC 220V / 50Hz or customized

Installation Height: 3m (Or according local rules)

Data Display:

LED outdoor screen(680x360x85mm)（Optional）

7inch display screen device inside

Data Transmission: GPRS\4G

Sampling Method: Pump-suction for Gases & Particle

Working Temperature: (-30~55)℃

Working Humidity: (0~95)%RH

Working Air pressure: (80~110)kPa

*For detailed information, please refer to the datasheet.

Datasheet
