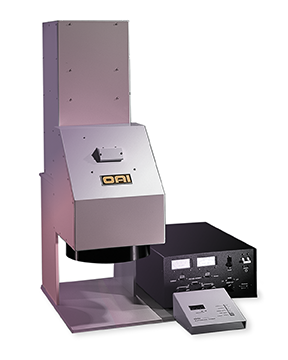

OAI 30 Collimated UV Lightsources and exposure systems (5'' ~ 16'')

Lens Diameter: 5" / 7'' / 10" / 12" / 14" / 16"

Exposing Beam Size

Diameter: 4" / 6" / 10" / 12" / 14"

Square: 4" / 6" / 8'' / 10" / 12" / 14" / 16" / 18" / 20"

Uniformity (within diameter): ±5% / ±5% / ±5% / ±5% / ±5% / ±5% / ±6% / ±6% / ±6% / ±6%

Collimation (1/2 angle): 2.6 / 2.3 / 2.0 / 1.6 / 1.4 / 1.2 / 1.0 / 0.8 / 0.6 / 0.4

Spectrum (specify)

Near UV: 365m, 405m and 436nm

Mid UV: 310nm

Deep UV: 220mm and 260nm

Lamp Power (specify):

200W, 350W, 500W, 1000W, 2000W

3.5KW and 5KW are available by special order

Data sheet
