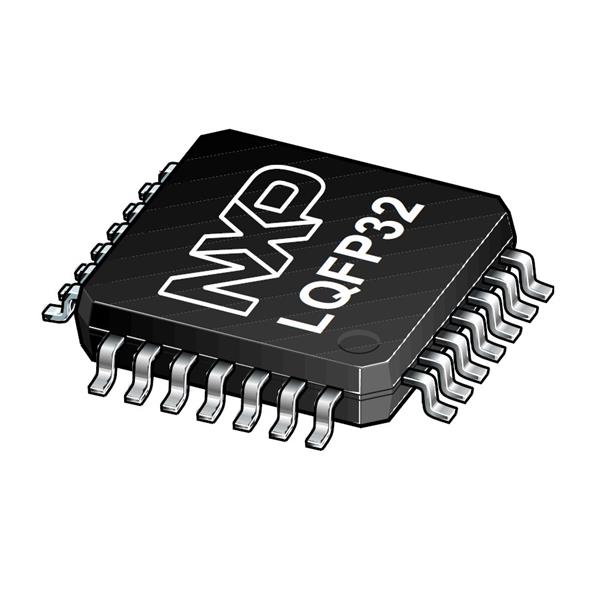

NXP S9S12GN48J1VLC MCUs 16-bit MCU, S12 core, 48KB Flash, 25MHz, -40/+105degC, Prototype, QFP 32
Manufacturer: NXP Model: S9S12GN48J1VLC - Contact
Core: S12
I/O Voltage: 3.13 V to 5.5 V
Unit Weight: 188.600 mg
Data RAM Size: 4 kB
Data RAM Type: SRAM
Data ROM Size: 1.5 kB
Data ROM Type: EEPROM
ADC Resolution: 10 bit
Data Bus Width: 16 bit
Interface Type: SCI, SPI
Mounting Style: SMD/SMT
Number of I/Os: 26 I/O
Watchdog Timers: Watchdog Timer
Processor Series: MC9S12G
Moisture Sensitive: Yes
Program Memory Size: 48 kB
Program Memory Type: Flash
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 3.15 V
Analog Supply Voltage: 3.13 V to 5.5 V
Number of ADC Channels: 12 Channel
Maximum Clock Frequency: 25 MHz
Operating Supply Voltage: 3.15 V to 5.5 V
Number of Timers/Counters: 1 Timer
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
