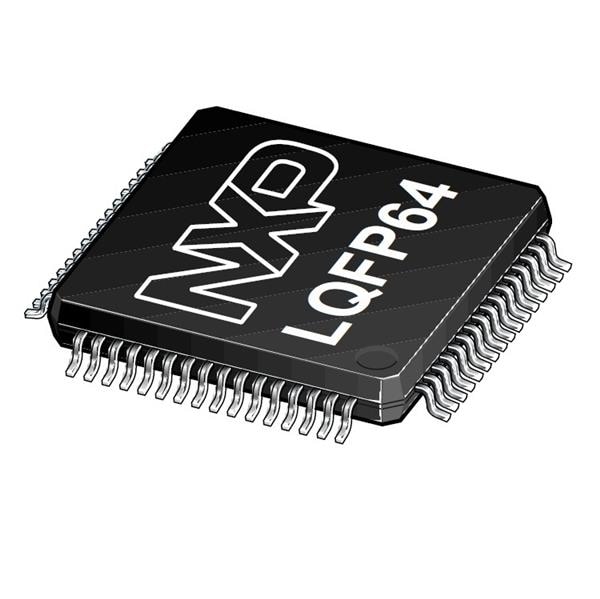

NXP S912ZVML32F3WKHR MCUs MagniV 16-bit MCU, S12Z core, 32KB Flash, 50MHz, -40/+150degC, Automotive Qualified, QFP 64
Manufacturer: NXP Model: S912ZVML32F3WKHR - Contact
Core: S12Z
Unit Weight: 373.600 mg
Data RAM Size: 4 kB
Data RAM Type: RAM
Data ROM Size: 512 B
Data ROM Type: EEPROM
Qualification: AEC-Q100
ADC Resolution: 12 bit
Data Bus Width: 16 bit
Interface Type: CAN, LIN, SCI, SPI
Mounting Style: SMD/SMT
Watchdog Timers: Watchdog Timer, Windowed
Program Memory Size: 32 kB
Program Memory Type: Flash
Supply Voltage - Max: 1.98 V
Supply Voltage - Min: 1.72 V
Number of ADC Channels: 9 Channel
Maximum Clock Frequency: 50 MHz
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
