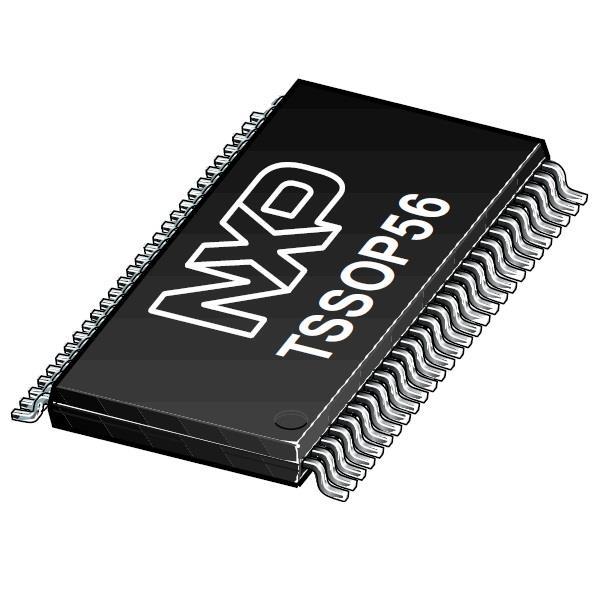

NXP PCA9505DGGY I/O Expanders 40-bit I2C-bus I/O port with RESET, OE and INT

Output Type: Open Drain

Logic Family: PCA9505

ESD Protection: 2 kV

Interface Type: I2C, Serial

Mounting Style: SMD/SMT

Number of I/Os: 40 I/O

Output Current: 50 mA

Interrupt Output: With Interrupt

Moisture Sensitive: Yes

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.3 V

Pd - Power Dissipation: 500 mW

Maximum Clock Frequency: 400 kHz

Operating Supply Current: 2.7 mA

Operating Supply Voltage: 2.3 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
