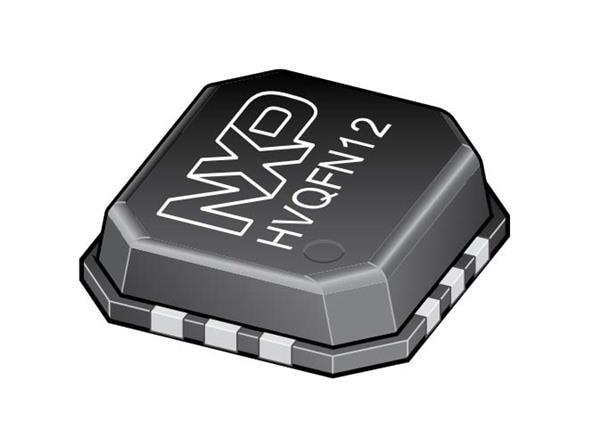

NXP MMZ09332BT1 General Purpose Amplifiers InGaP HBT Linear Amplifier, 130-1000 MHz, 30 dB, 33 dBm
ManufacturerNXP(View more products from this manufacturer)
ModelMMZ09332BT1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 30.5 dB
Technology: InGaP
Unit Weight: 22 mg
Mounting Style: SMD/SMT
Test Frequency: 760 MHz
Operating Frequency: 130 MHz to 1 GHz
Supply Voltage - Max: 5 V
Supply Voltage - Min: 3 V
Operating Supply Current: 108 mA
Operating Supply Voltage: 3 V to 5 V
P1dB - Compression Point: 32.8 dBm
OIP3 - Third Order Intercept: 43 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
