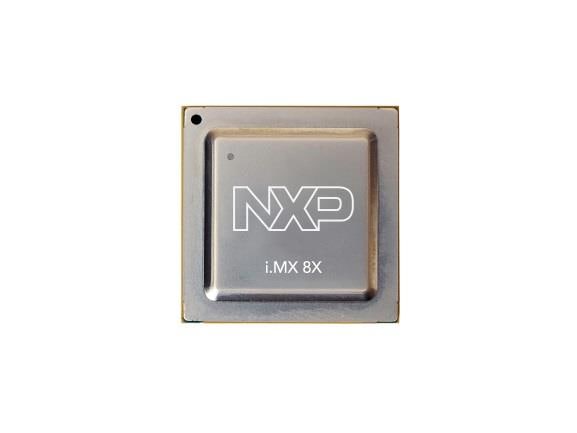

NXP MIMX8QX6CVLFZAC Processors - Application Specialized i.MX 8QuadXPlus 21x21

Core: ARM Cortex A35, ARM Cortex M4F

Application: Industrial

I/O Voltage: 1.8 V, 2.5 V, 3.3 V

Memory Type: DDR3L, LPDDR4, SRAM

Data RAM Size: 256 kB, 512 kB

Data Bus Width: 64 bit

Interface Type: ADC, CAN, CAN FD, Ethernet, I2C, MIPI-CSI, MIPI-DSI, QSPI, PCIe, PWM, SAI, SPDIF, SPI, UART, USB 2.0 OTG, USB 3.0 OTG, Video

Mounting Style: SMD/SMT

Number of Cores: 5 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Fixed/Floating Point

Moisture Sensitive: Yes

L1 Cache Data Memory: 16 kB, 4 x 32 kB

Maximum Clock Frequency: 264 MHz, 1.2 GHz

Operating Supply Voltage: 1 V

L1 Cache Instruction Memory: 16 kB, 4 x 32 kB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 512 kB
