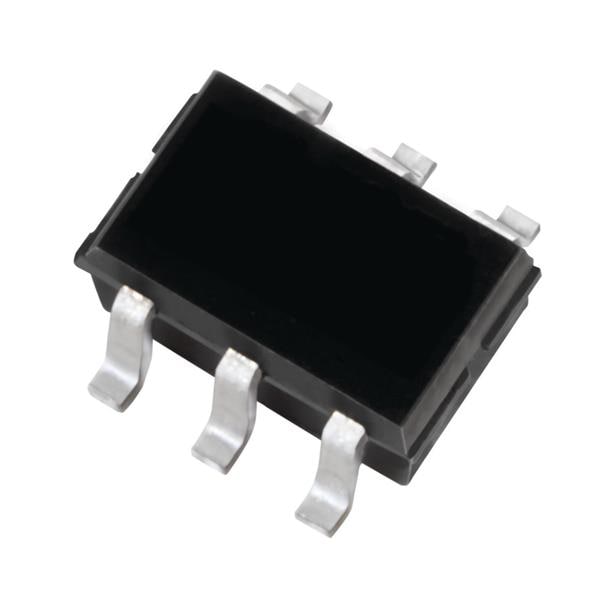

NXP BGA2800,115 General Purpose Amplifiers 6CH MMIC Amp 3.7 dB 3.3V 10.5mA 3.2GHz
Manufacturer: NXP Model: BGA2800,115 - Contact
Gain: 20.2 dB
Bandwidth: 3.2 GHz
Technology: Si
Unit Weight: 5.464 mg
Isolation dB: 37 dB
Mounting Style: SMD/SMT
Test Frequency: 2.15 GHz
Input Return Loss: 15 dB
NF - Noise Figure: 3.7 dB
Number of Channels: 1 Channel
Operating Frequency: 0 Hz to 2.2 GHz
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Pd - Power Dissipation: 200 mW
Operating Supply Current: 10.5 mA
Operating Supply Voltage: 3 V to 3.6 V
P1dB - Compression Point: - 1 dBm
OIP3 - Third Order Intercept: 11 dBm
Maximum Operating Temperature: + 125 C
