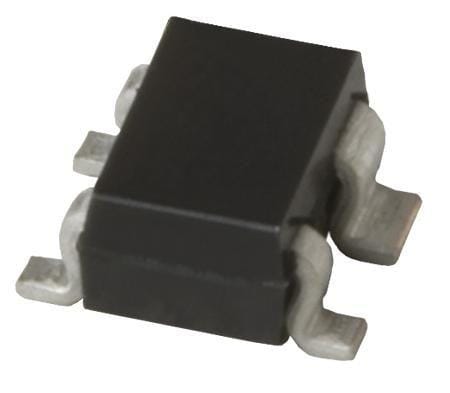

NXP BFU725F/N1,115 RF Bipolar Small Signal 2.8V 0.04A 4-Pin Trans GP BJT NPN
Manufacturer: NXP Model: BFU725F/N1,115 - Contact
Width: 1.35 mm
Height: 1 mm
Length: 2.2 mm
Technology: SiGe
Unit Weight: 6.670 mg
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: Bipolar Wideband
Operating Frequency: 55 GHz
Transistor Polarity: NPN
Pd - Power Dissipation: 136 mW
DC Current Gain hFE Max: 160 at 10 mA at 2 V
Gain Bandwidth Product fT: 55000 MHz
Emitter- Base Voltage VEBO: 1 V
Collector- Base Voltage VCBO: 10 V
Continuous Collector Current: 25 mA
Maximum DC Collector Current: 40 mA
Maximum Operating Temperature: + 150 C
DC Collector/Base Gain hfe Min: 40
Collector- Emitter Voltage VCEO Max: 2.8 V
