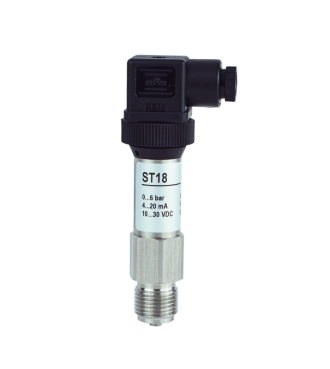

Nuova Fima ST 18 Pressure transmitter (0-6 bar)

Output signals: 4...20 mA, 0...5 Vcc, 0...10 Vcc.

Non-linearity (BFSL): ≤ ± 0,25 % of the range, according to IEC 61298-2.

Non-repeatability: ≤ 0,1 % of the range, according to IEC 61298-2.

Accuracy: ≤ ± 0,5% of the range (1).

Thermal drift: between 0 and 80°C, 1% of span; 2,5% of span, max (2).

Long term drift: ≤ 0,1 % of span.

Zero and span adjustement: ± 10 % span typical.

Process fluid temperature: -25...+100 °C.

Ambient temperature: -25...+85 °C.

Stocking temperature: -30...+85 °C.

Response time: <4 ms (measuring); <150 ms (switching on).

Emission and immunity: according to EN 61326,

(group 1 - class B; industrial applications).

Vibration resistance: 20g (10...2000 Hz, according to IEC 60068-2-6).

Shock resistance: 40g (6 ms, according to IEC 60068-2-27).

Sensor: ceramic in Al2O3.

Case: in AISI 316L, vented up to 16 bar.

Protection degree: IP 65 according to IEC 60529 (3).

Process connection: in AISI 316L, hole ø 2,5 mm (with restrictor ø 0,7

mm for measuring ranges ≥ 60 bar).

Weight: 0,18 kg
