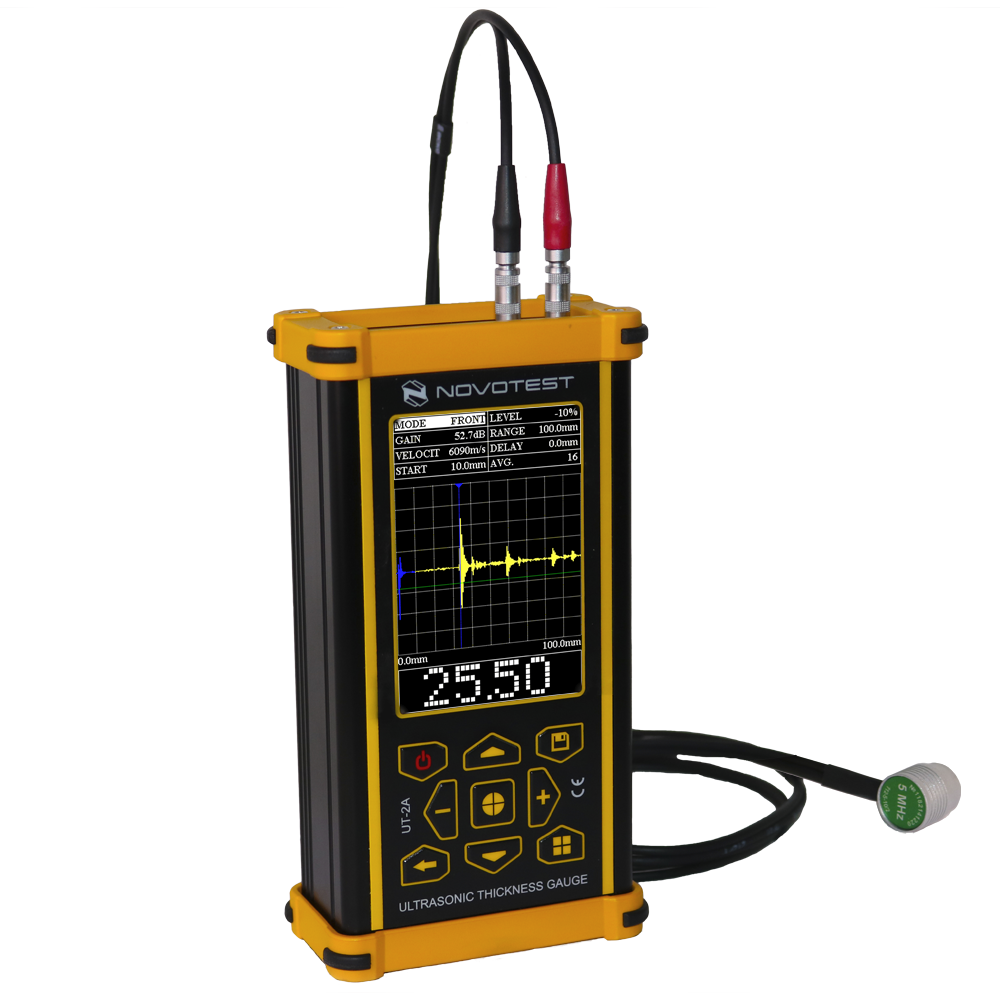

NOVOTEST UT-2A Ultrasonic Thickness Gauge (A-Scan)

Measuring thicknesses range for steel: 0.4 – 1000mm

Unit Type: mm, inch, μs

Resolution: 0,01mm

Ultrasound velocity adjustment range: 700-17000 m/s

Ultrasound velocity in the standard device sample: 6070 ± 70 m/s

Operating modes:

+A-scan

+B-scan

+Digital mode

+Control mode

+Manual

Measurement methods:

+Echo

+Echo Echo (Dual Echo)

+Peak-peak

Display Colour: 3.5 inch 480 * 320

Menu Language: English, Russian

Weight of the electronic unit, not more: 0.5kg

Dimensions (L x W x H): 165x90x50mm

Power Supply: Built-in Li-ion Battery

Time of continuous work, not less than, h: 10 ( up to 20 by special order )

Operating temperature range for the electronic unit, ° C: -20 to +40

Air moisture, no more: 98 %, at 35 °С

Include:

+ Electronic unit Ultrasonic Thickness Gauge UT-2A

+ Probe 1 pc

+ Lemo-Lemo сable

+ Cable for PC

+ Charger

+ Operating manual

+ Calibration certificate

+ Case

Description:

Ultrasonic thickness gauge with A-scan UT-2A is a powerful, lightweight and portable thickness gauge, made in an ergonomic shock-resistant case with rubber protectors – a modern industrial version of a general-purpose thickness gauge. It is an excellent choice for expert ultrasonic testing in the laboratory and the field conditions.

Advantages:

- Wide range of measuring thicknesses

- Function of thickness gauge and flaw detector

- Convenience and ease in operation

- B-scan mode, which allows user to get the product profile like a picture that is easy to read

- Minimum number of controls

- Select the type of probe from archive

- Preset velocity of ultrasound

- High brightness color display

- Indicator the presence of acoustic contact
