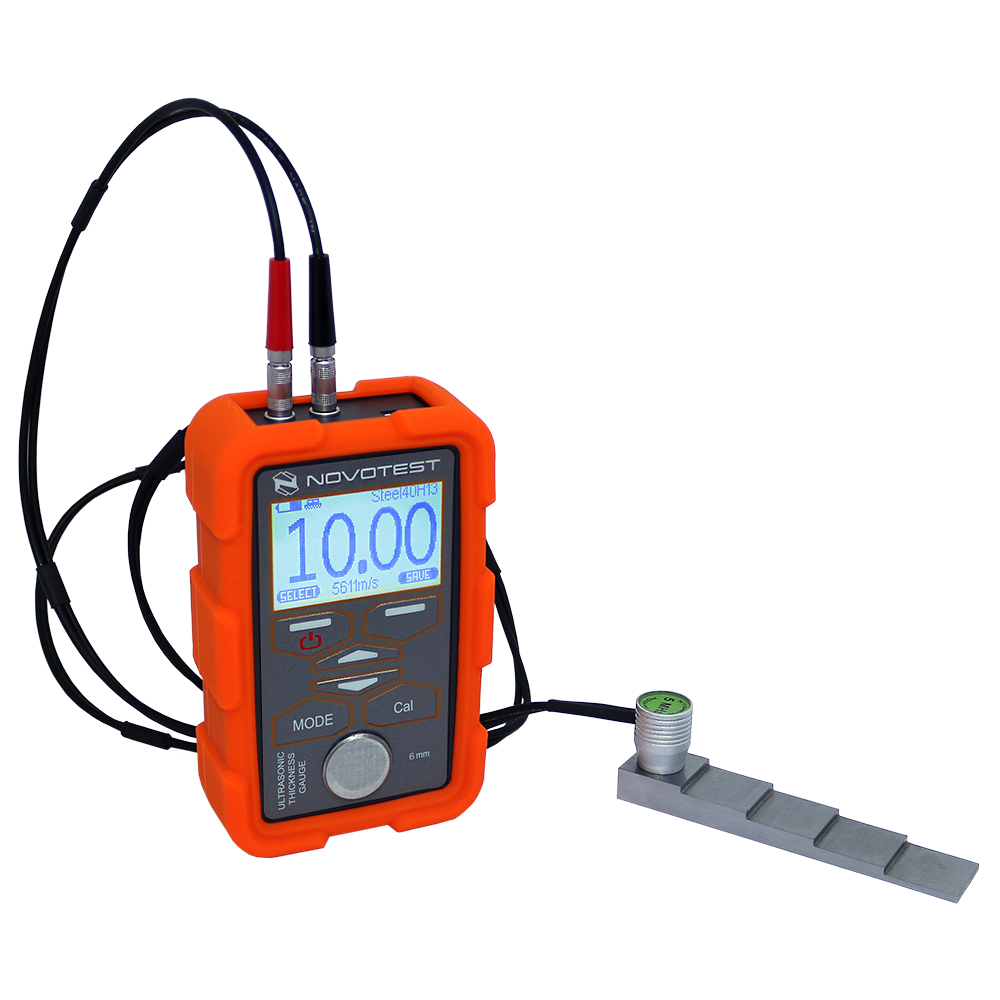

NOVOTEST UT-1M-Lab Ultrasonic Thickness Gauge

Wireless connection with Android gadgets via NOVOTEST Lab App

Measuring thicknesses range for steel, mm: 0.45 - 1500 and more, depending on material and surfaces

Resolution, mm: 0.01

Basic measurement accuracy, mm: ± (0.01*T+0.05) (*For range 0.8 - 300 mm)

Basic probes/range for steel: 2.5 MHz / 2.5 - 1000 mm

5 MHz / 0.8 - 500 mm

10 MHz / 0.45 - 300 mm

Optional probes/range for steel: 1.25 MHz / 4 - 1500 mm

2 MHz / 3 - 1200 mm

High-temperature 5MHz (up to 250 °С) / 0.8 - 300 mm

Echo-Echo 5MHz for through-coating measurements / 3.5 - 26 mm

Display: Monochrome, 2.5 inch, 128*64

Storage of measurement results: 128

Charger type: External charger for batteries

Battery: 2pcs standard АА batteries

Electronic unit weight, no more, kg: 0.25

Dimensions (L x W x H), mm: 122х76х37

Operating temperature range, °C: -20 to +40
